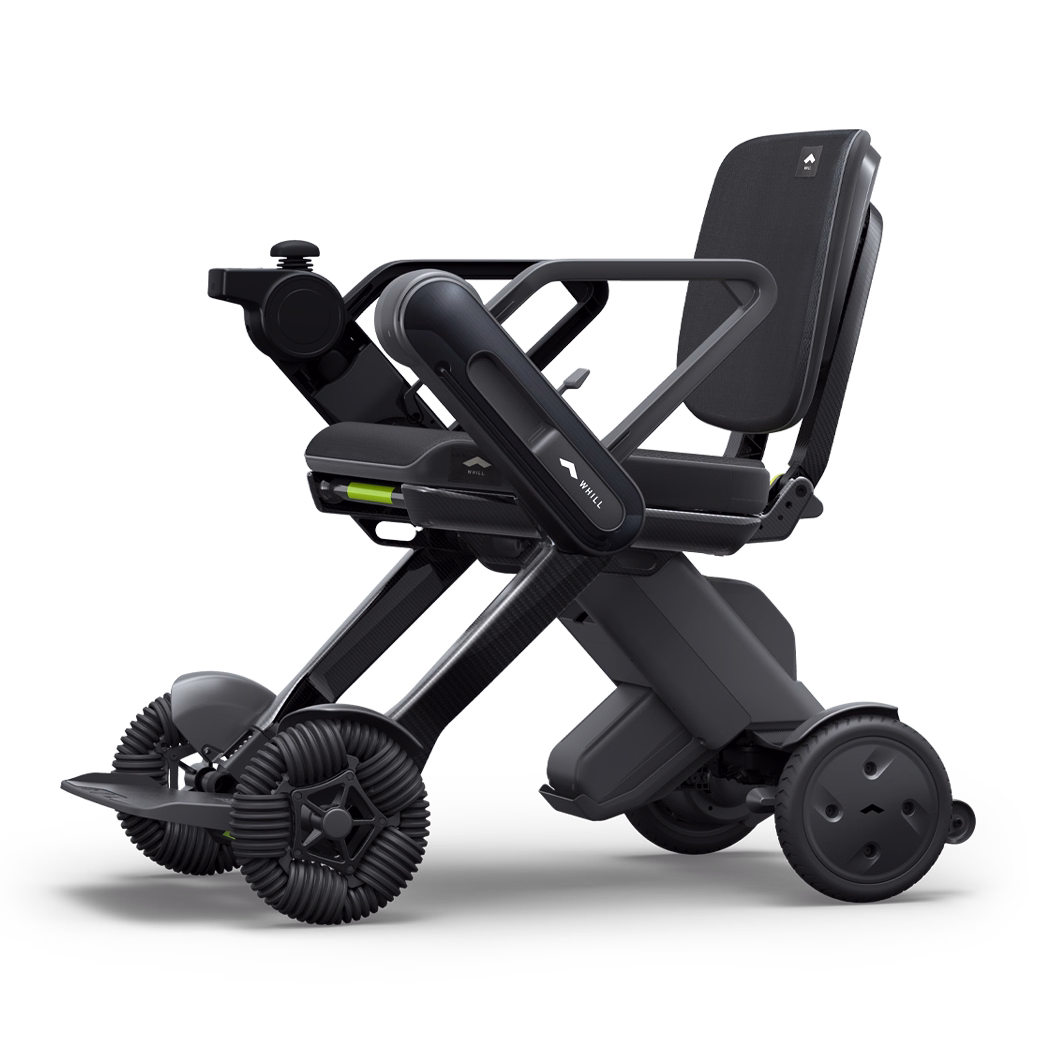

WHILL Model C Lite
Model C Lite
Cutting Edge Features

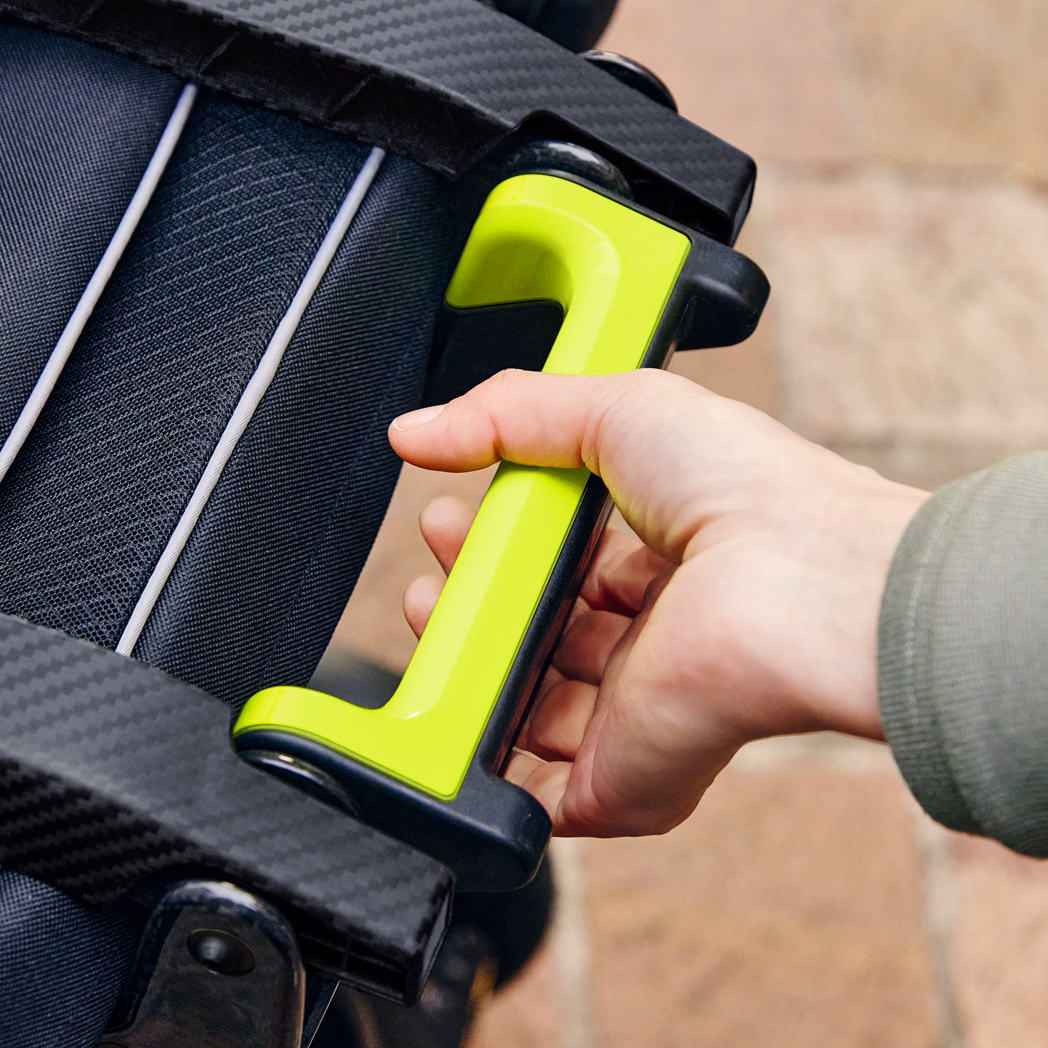

Easy One-Hand Folding
Newly developed mechanism allows one-handed folding, eliminating the awkward two-handed bending motions that are common with traditional folding electric wheelchairs.

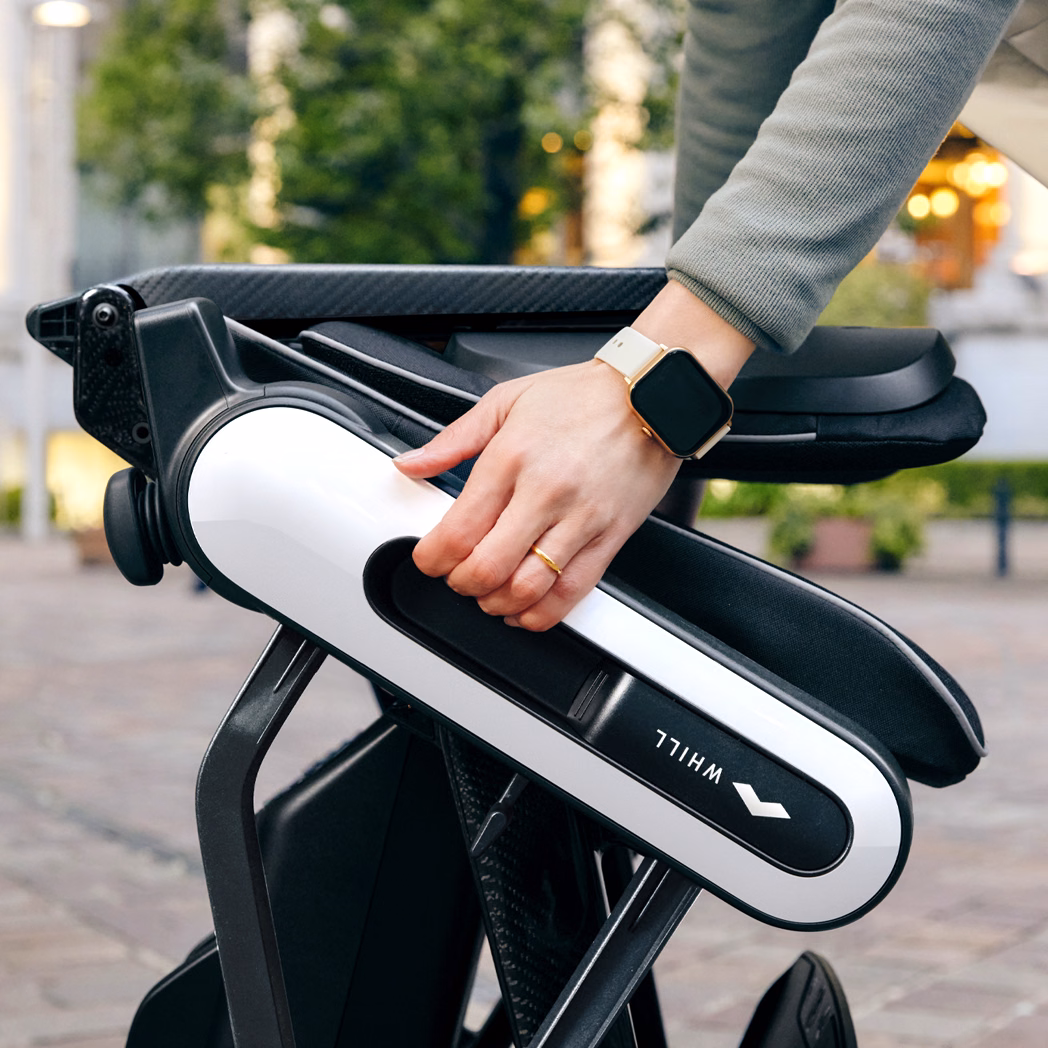

Grip Handle for Loading
Side grip handles make loading into vehicles simple for caregivers and taxi drivers. The handles are easy to access, ensuring smooth and efficient transfers.

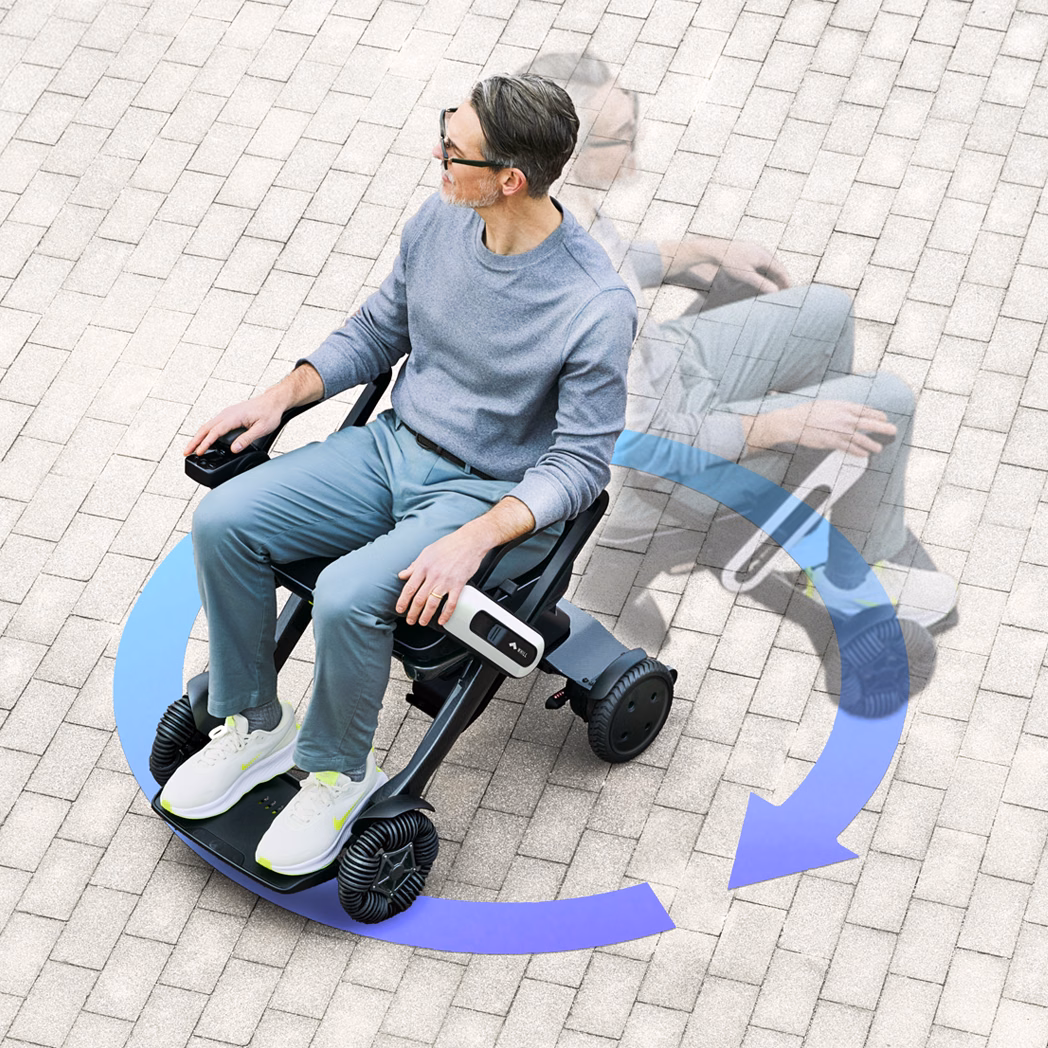

Maneuverability
A 31.9-inch turning radius enables tight turns in narrow spaces.

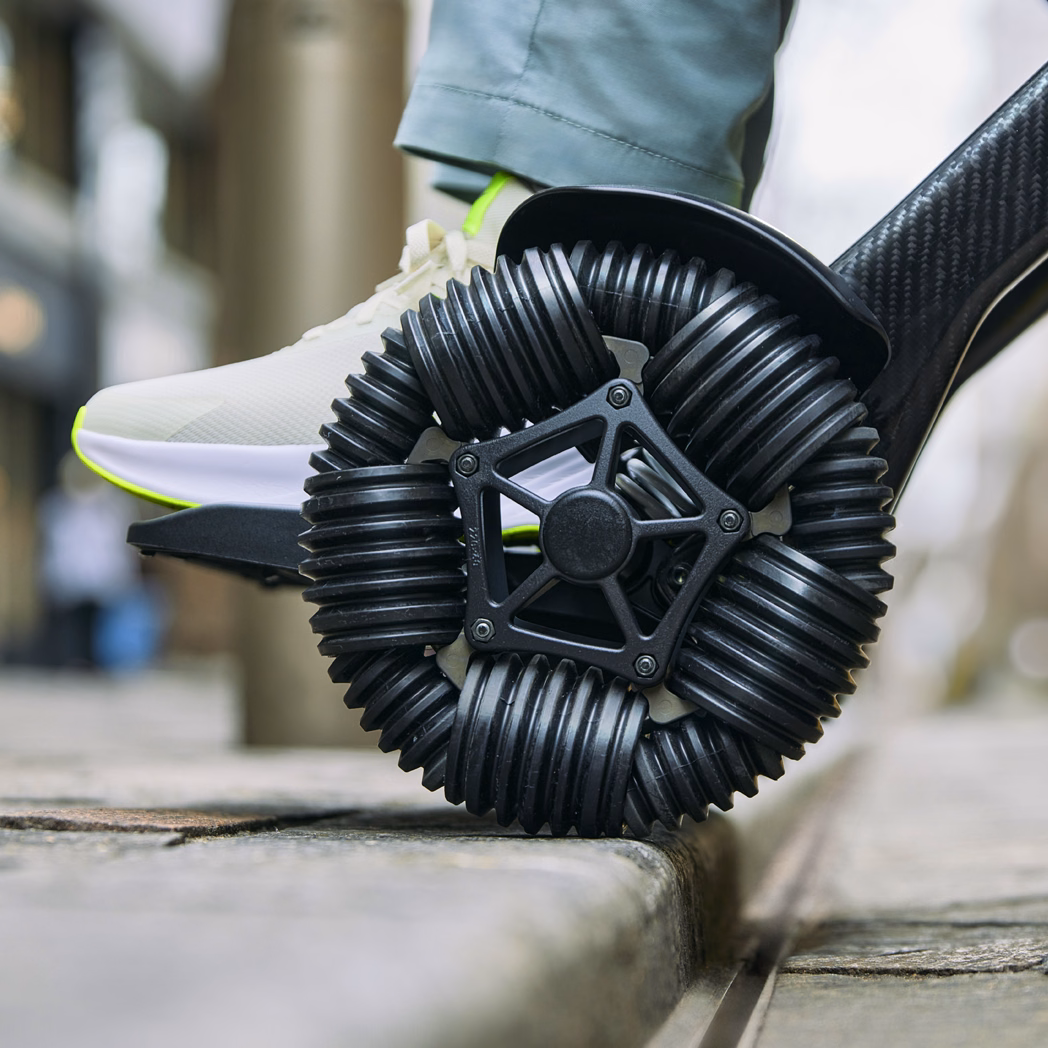

High Obstacle Clearance
Clear curbs up to 2 inches with ease thanks to large front wheels and two powerful motors. This combination provides the stability needed to handle everyday obstacles confidently.

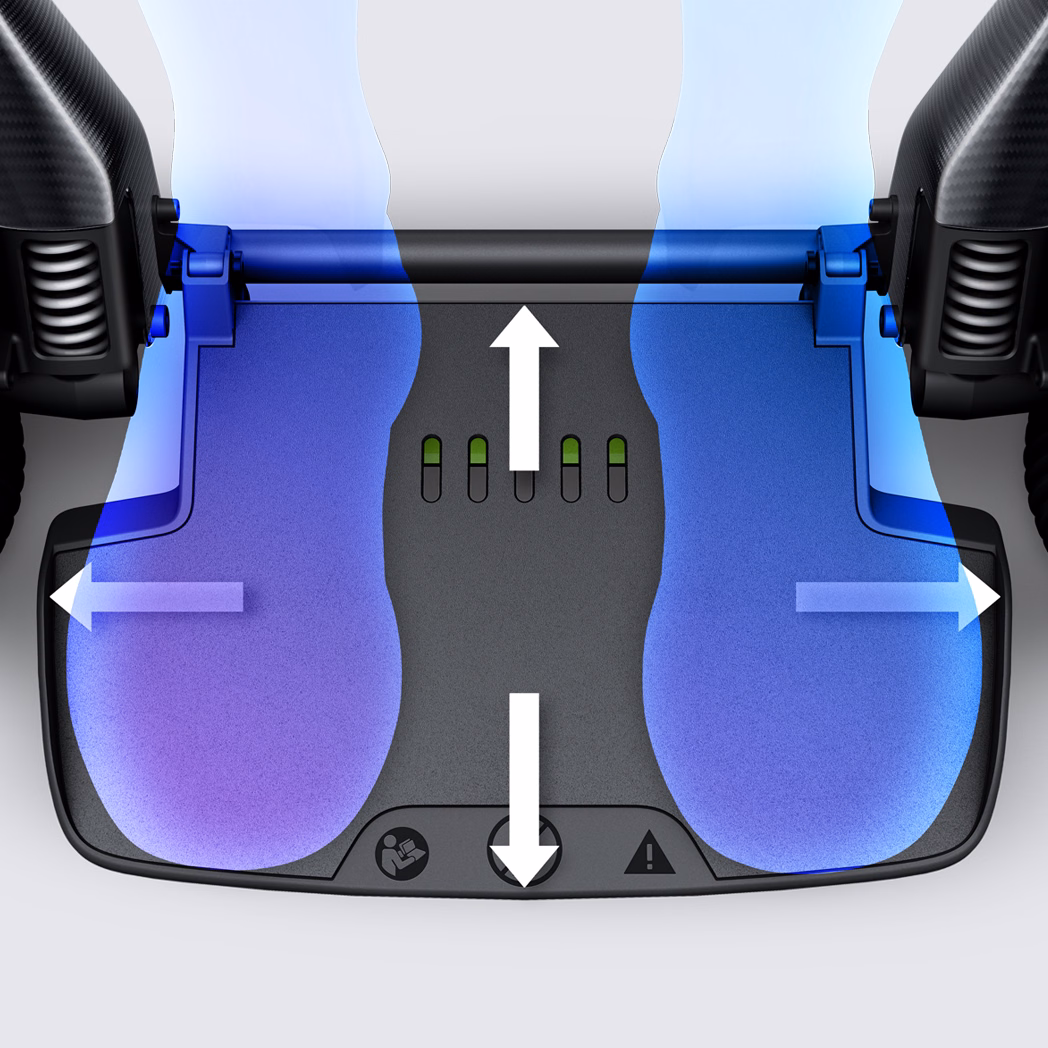

Largest Legroom in Its Class
Enjoy the largest foot support in the folding category. Flip-up design improves usability for a wider range of users.

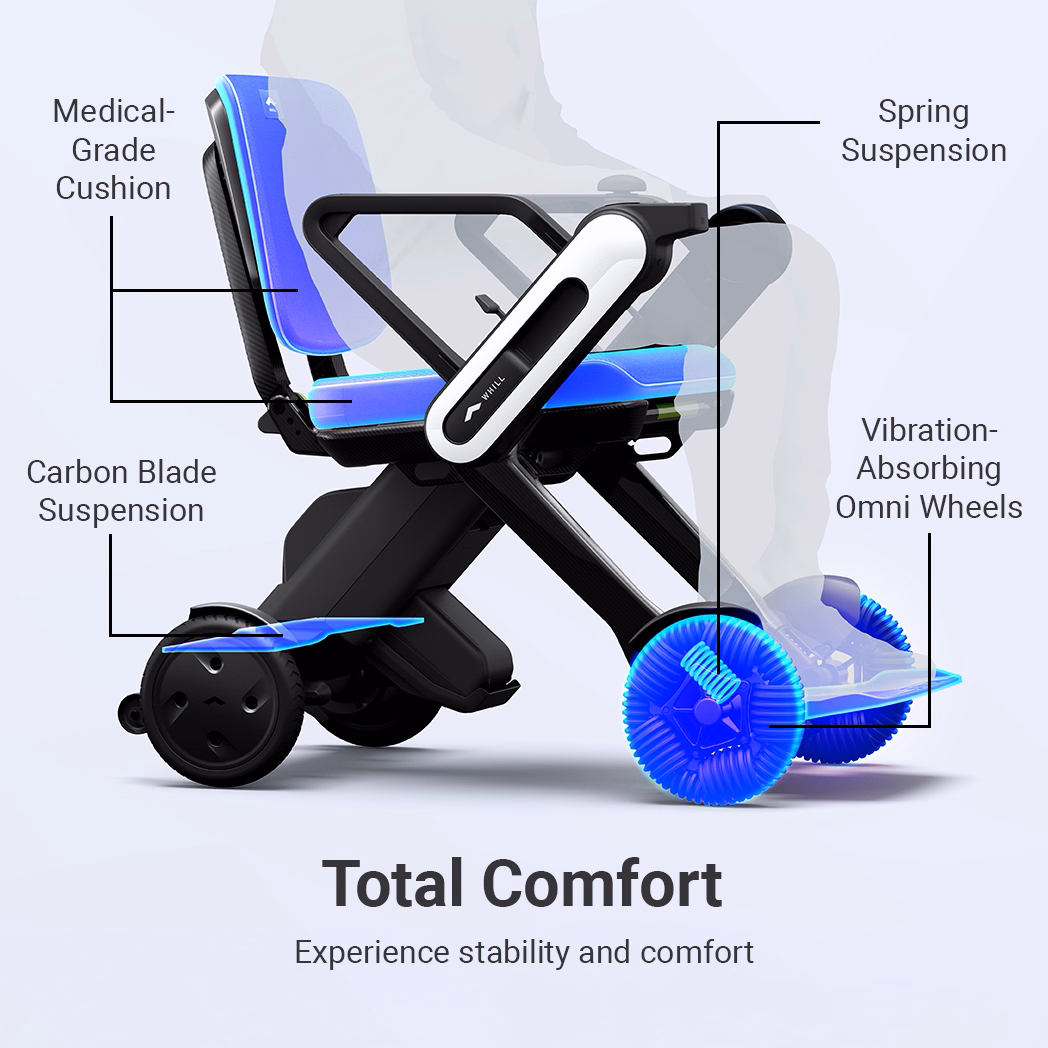

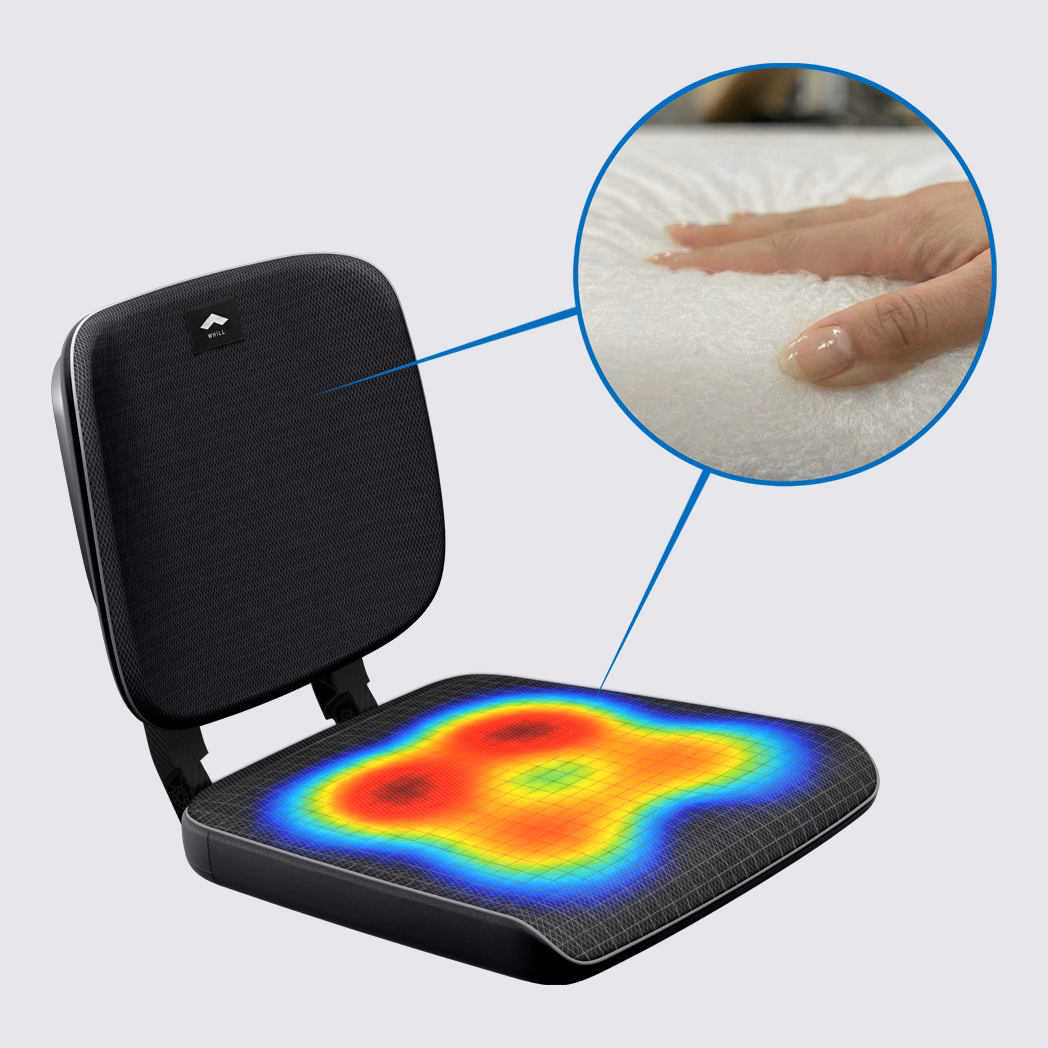

High Quality Medical-Grade Cushion
The same premium material used in Japan’s bullet train first-class seats provides all-day comfort with our medical-grade cushioning, widely recognized as best in its class.

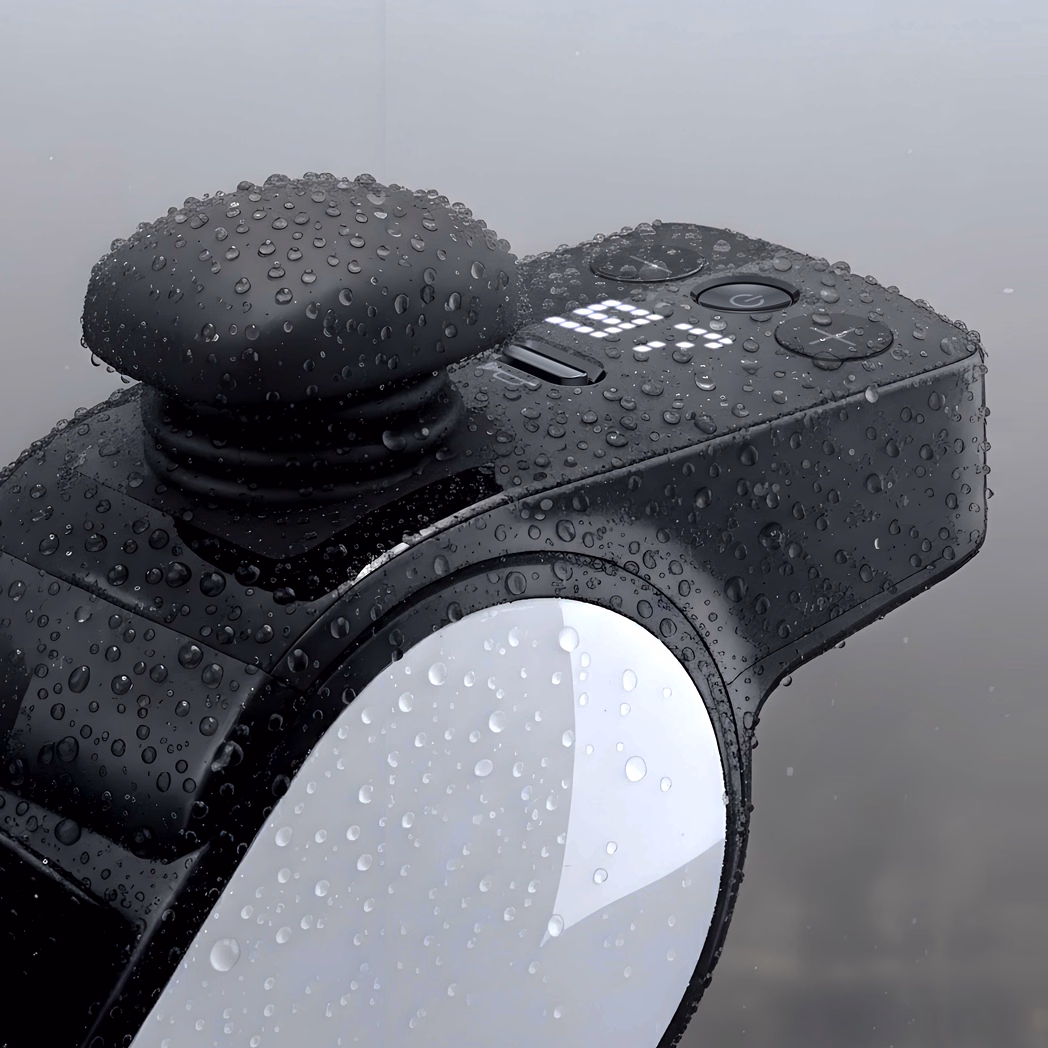

IPX5 Water Resistant
Protected against water exposure for trips in the rain and outdoor parking.

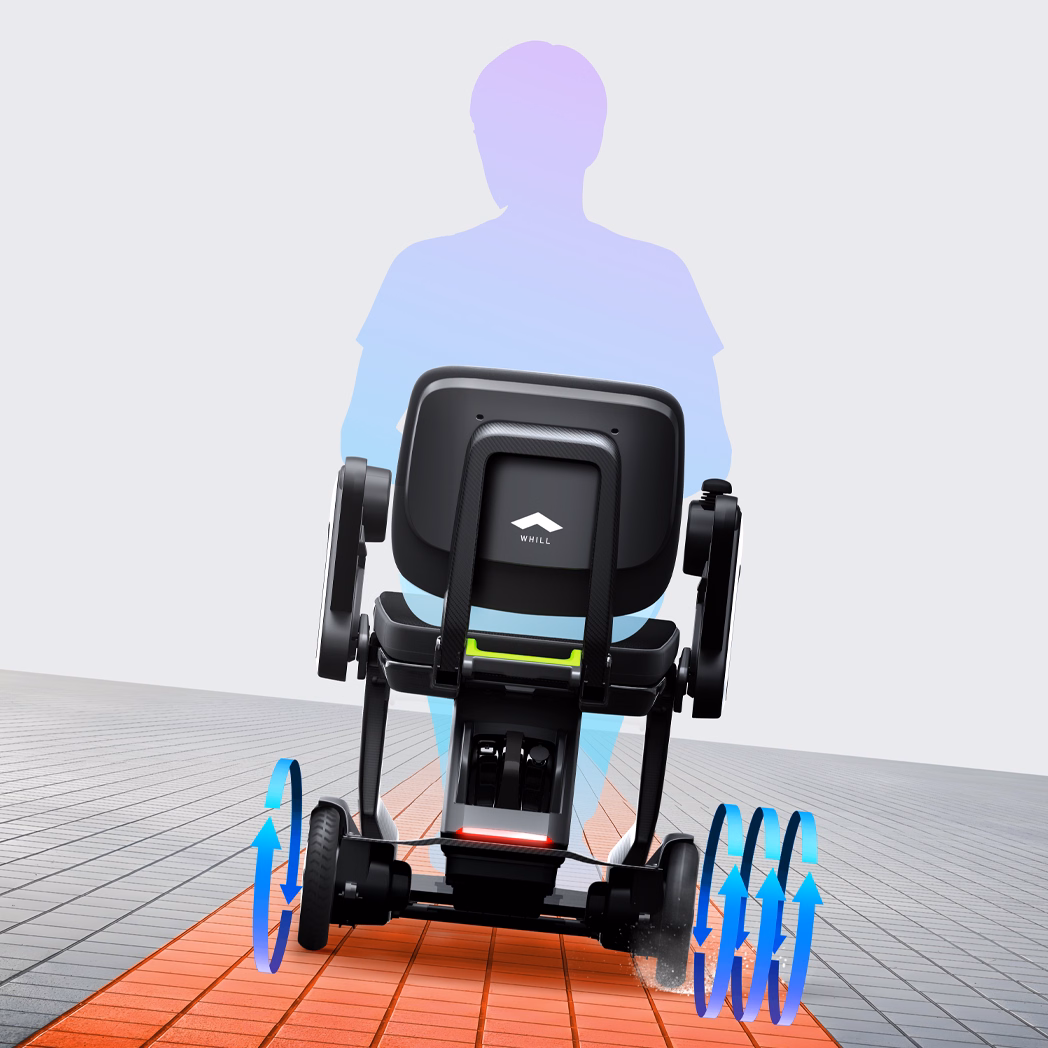

Stay Straight on Slopes
Sensors automatically adjust each rear wheel’s rotation independently, keeping you moving in a straight line even on slopes.

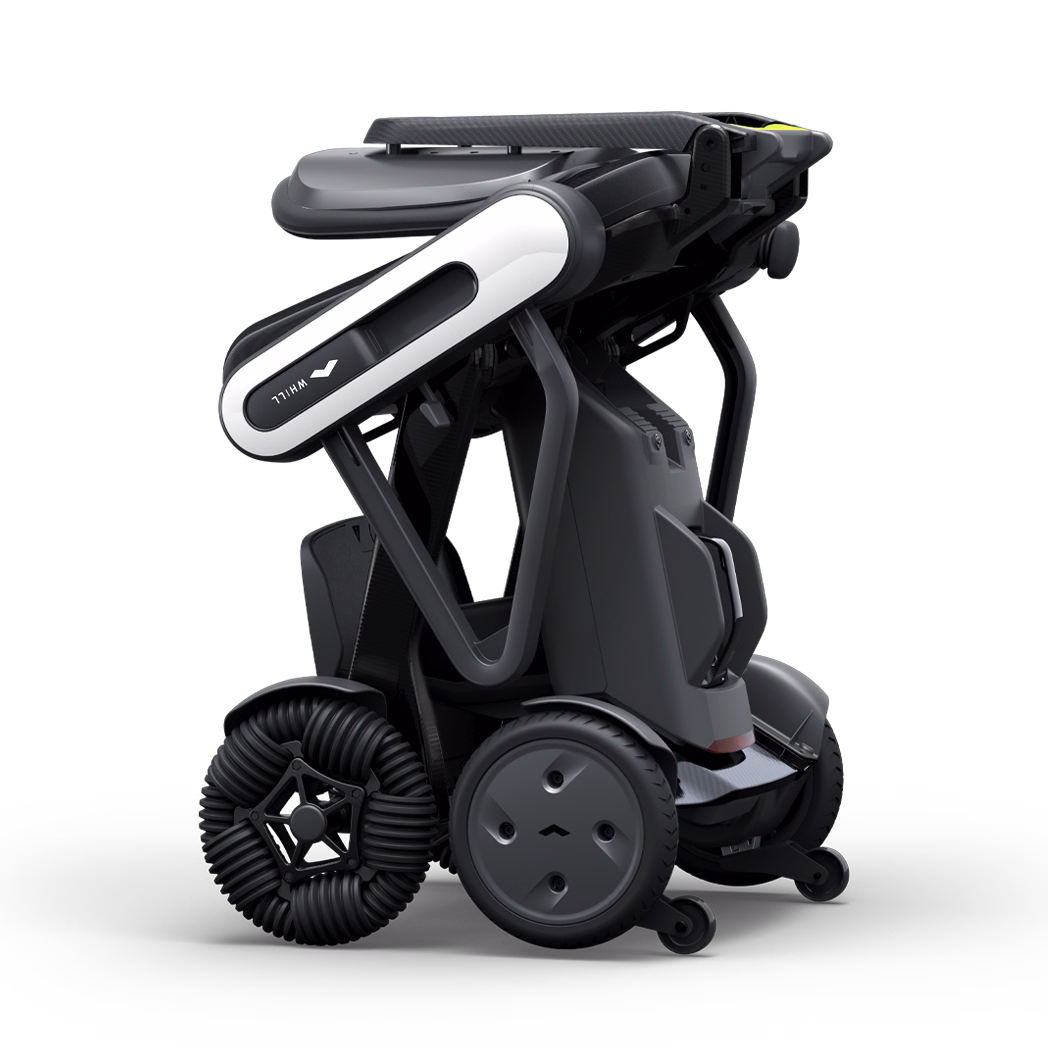

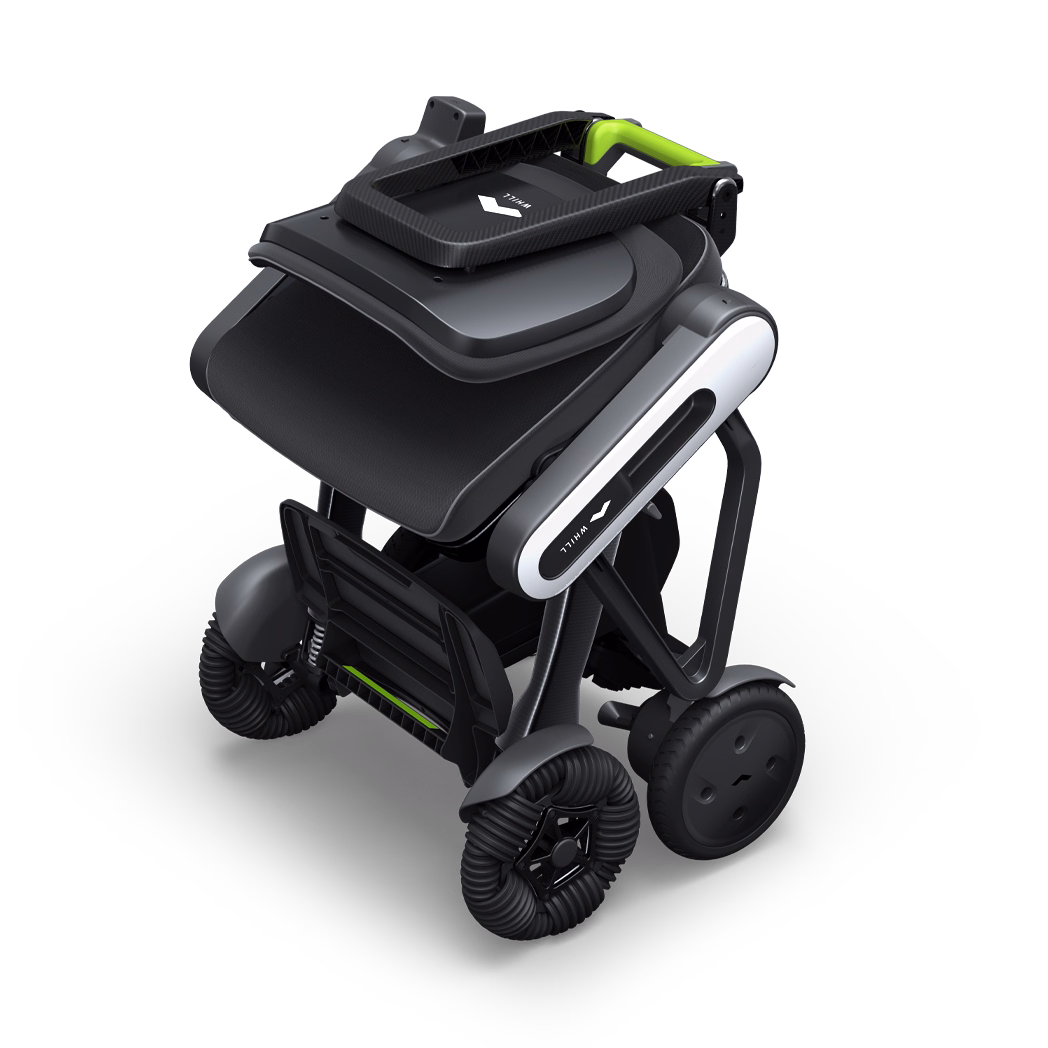

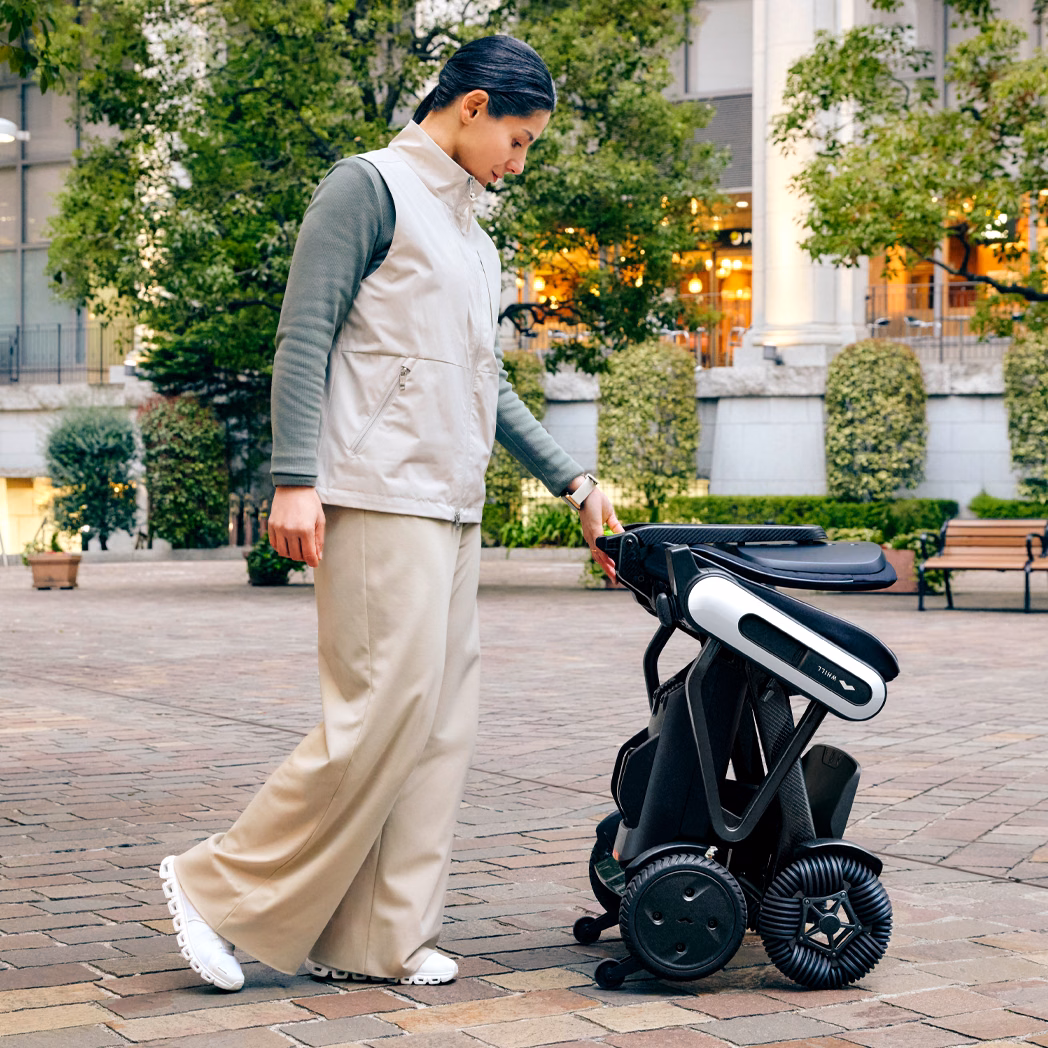

Push and Roll to Transport
Once folded, it stands upright and rolls easily for transport.

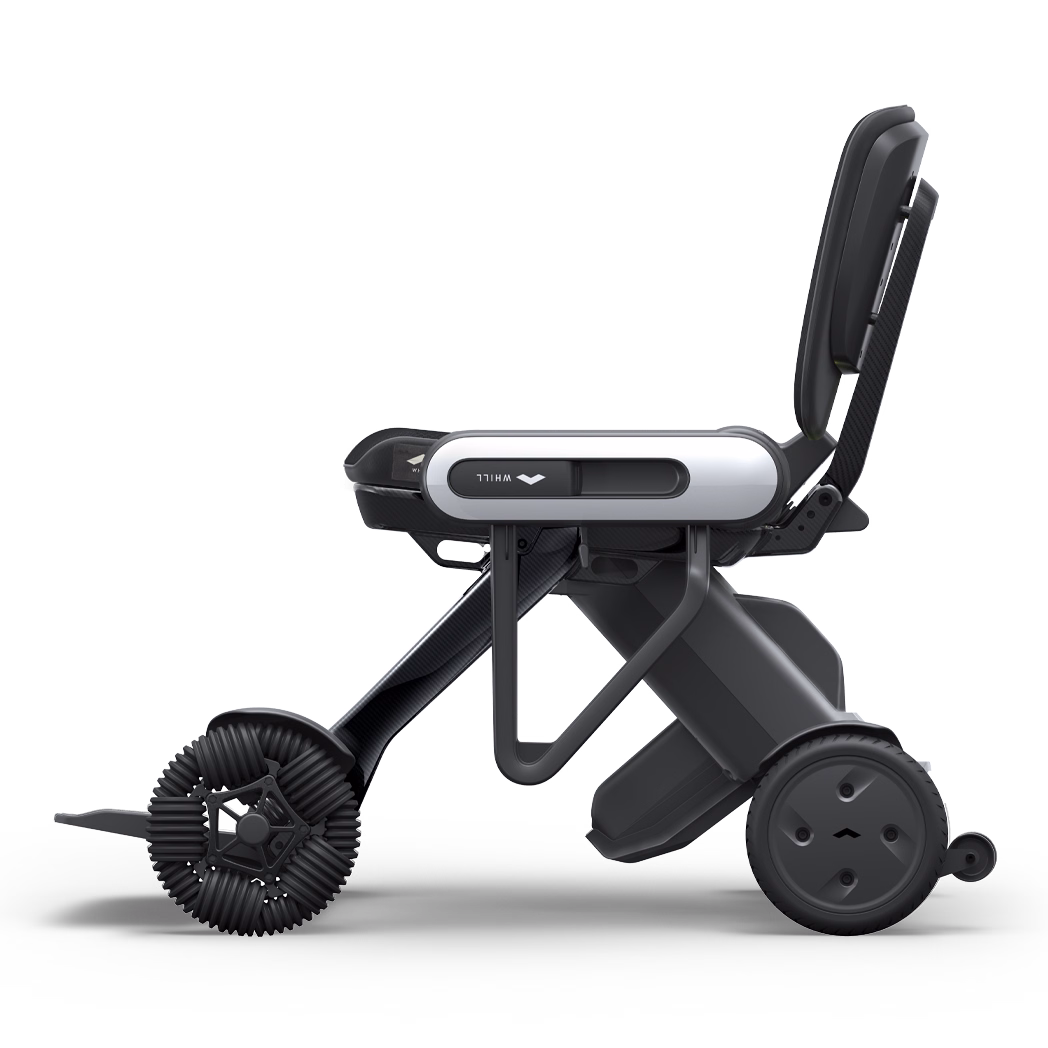

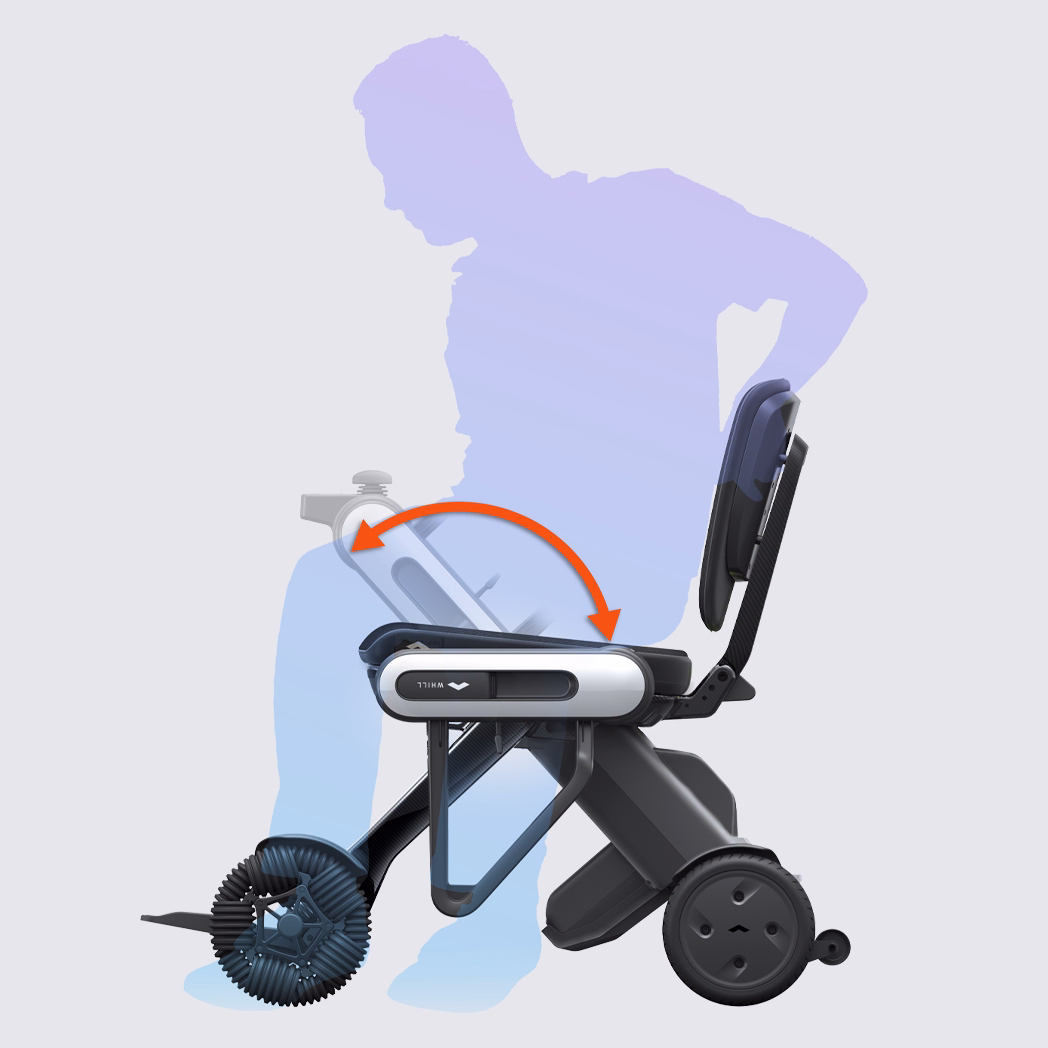

Easy Side Transfer
Fold-down armrest for seamless side transfers.

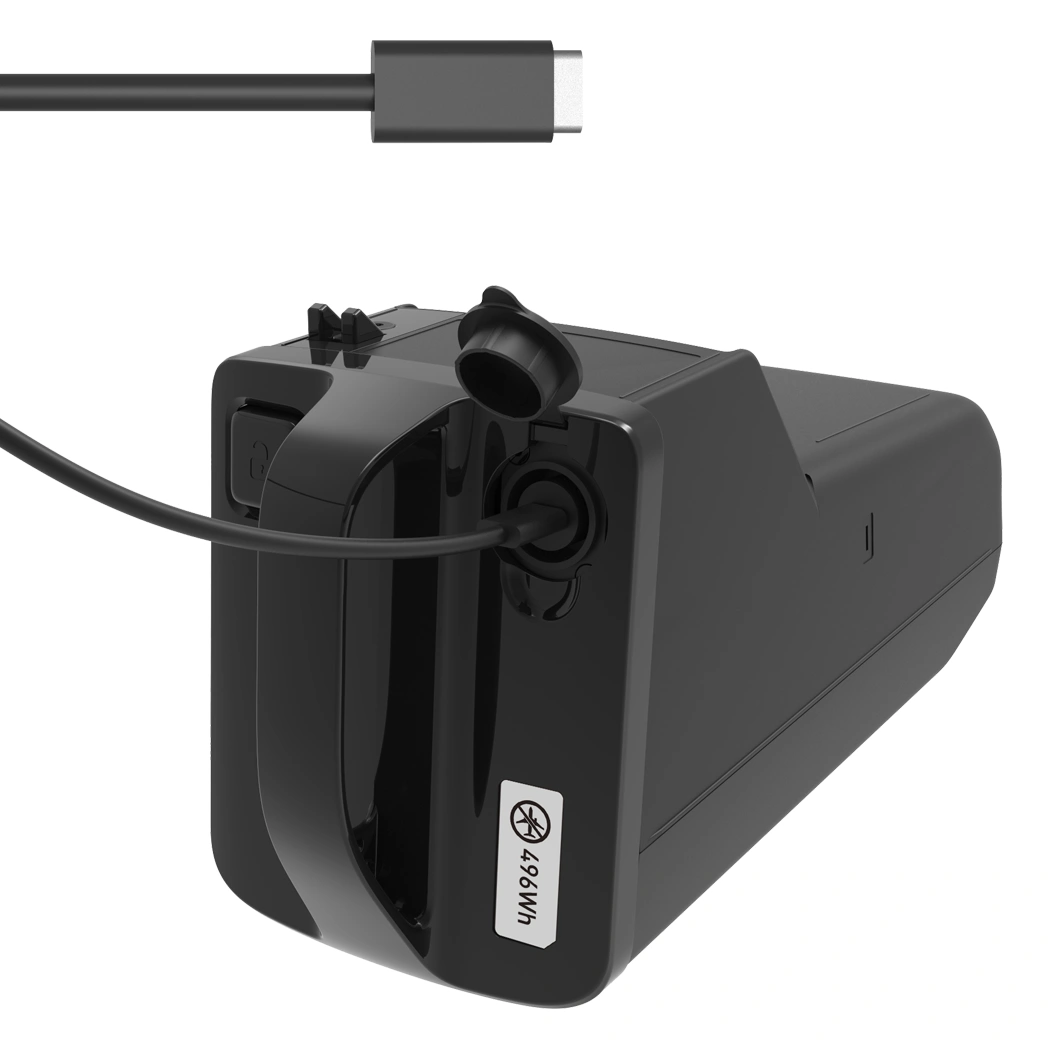

Long-Range USB Type-C Battery
Optional battery for longer travel range. Enjoy significantly extended travel with a 38.5 km driving range – up from the 23.4 km with the standard battery.

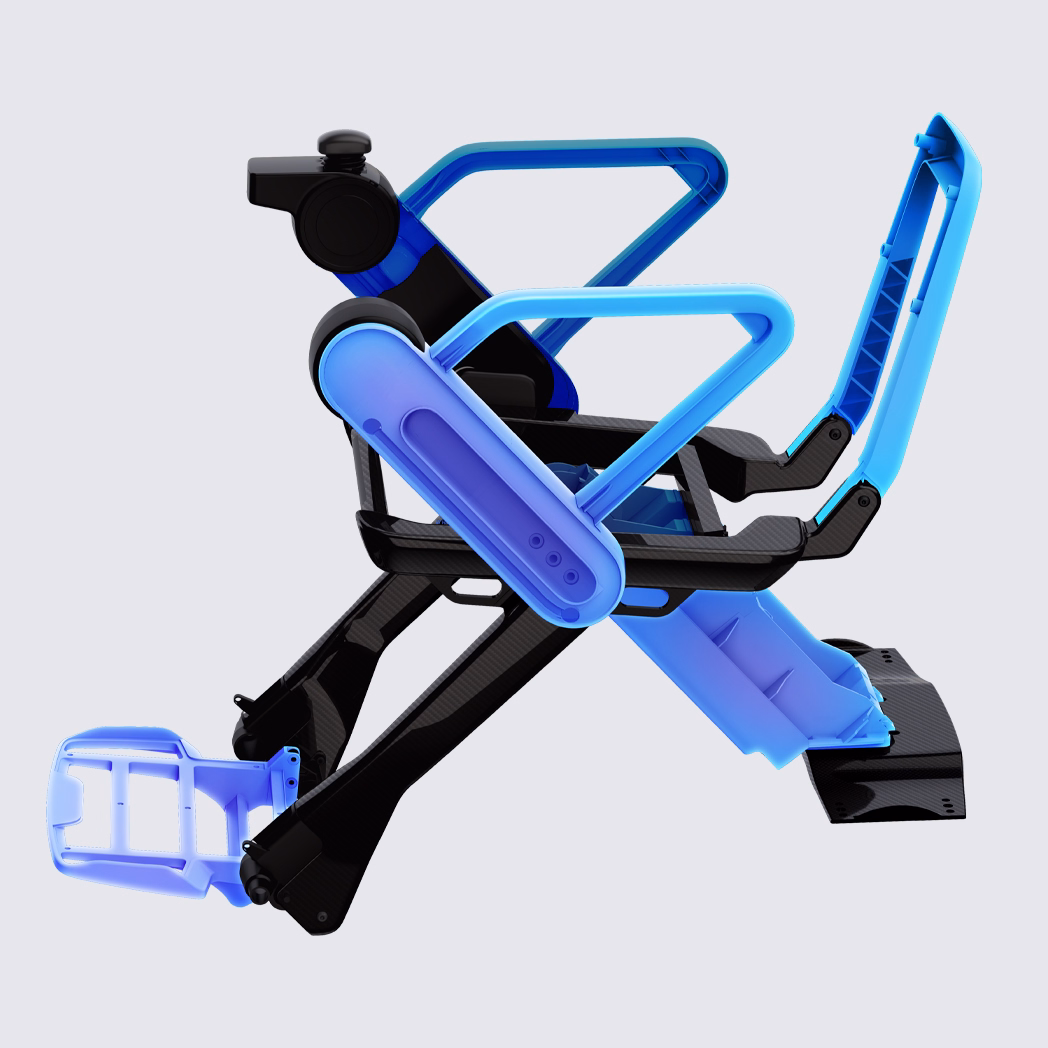

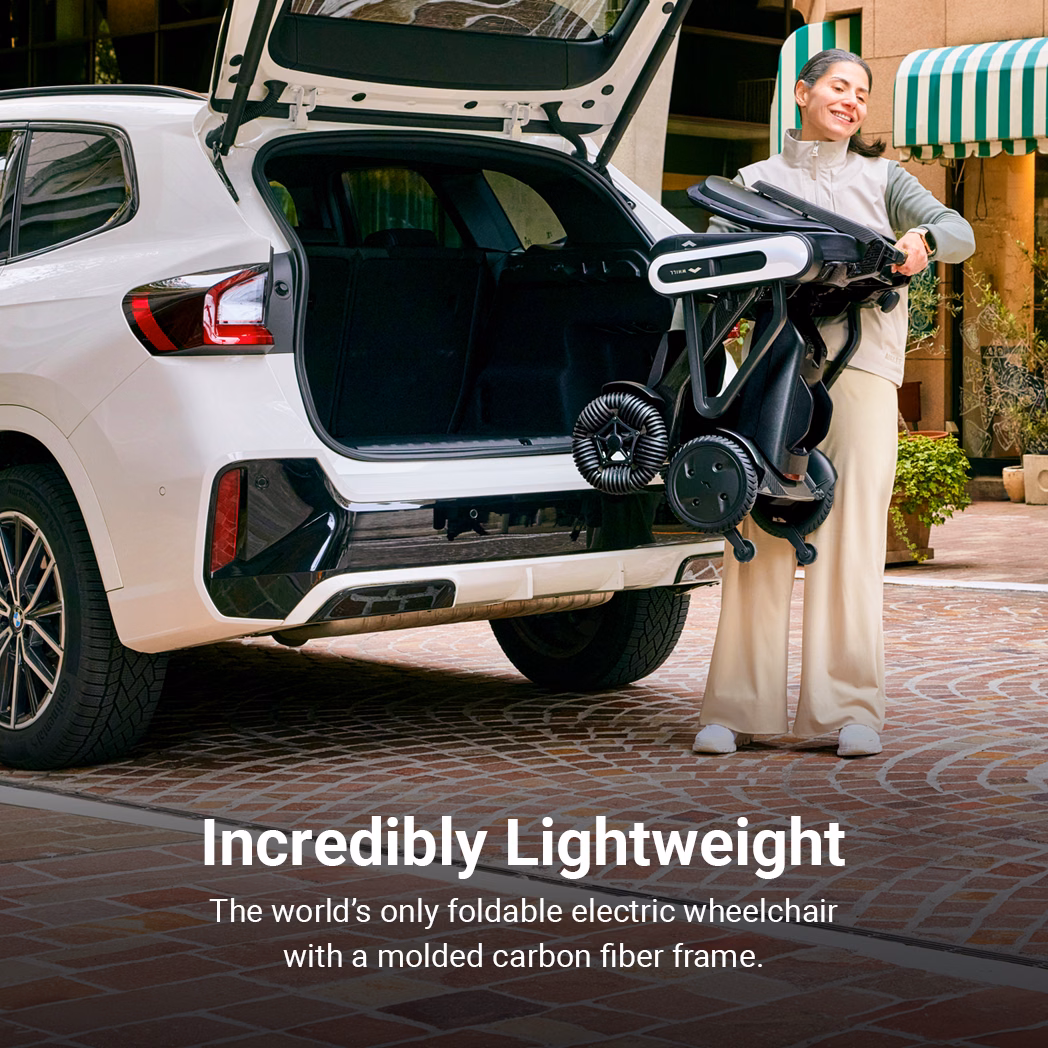

World’s First Molded Carbon Fiber Frame
The only foldable electric wheelchair with a molded carbon fiber frame, weighing just 37.5 lbs.

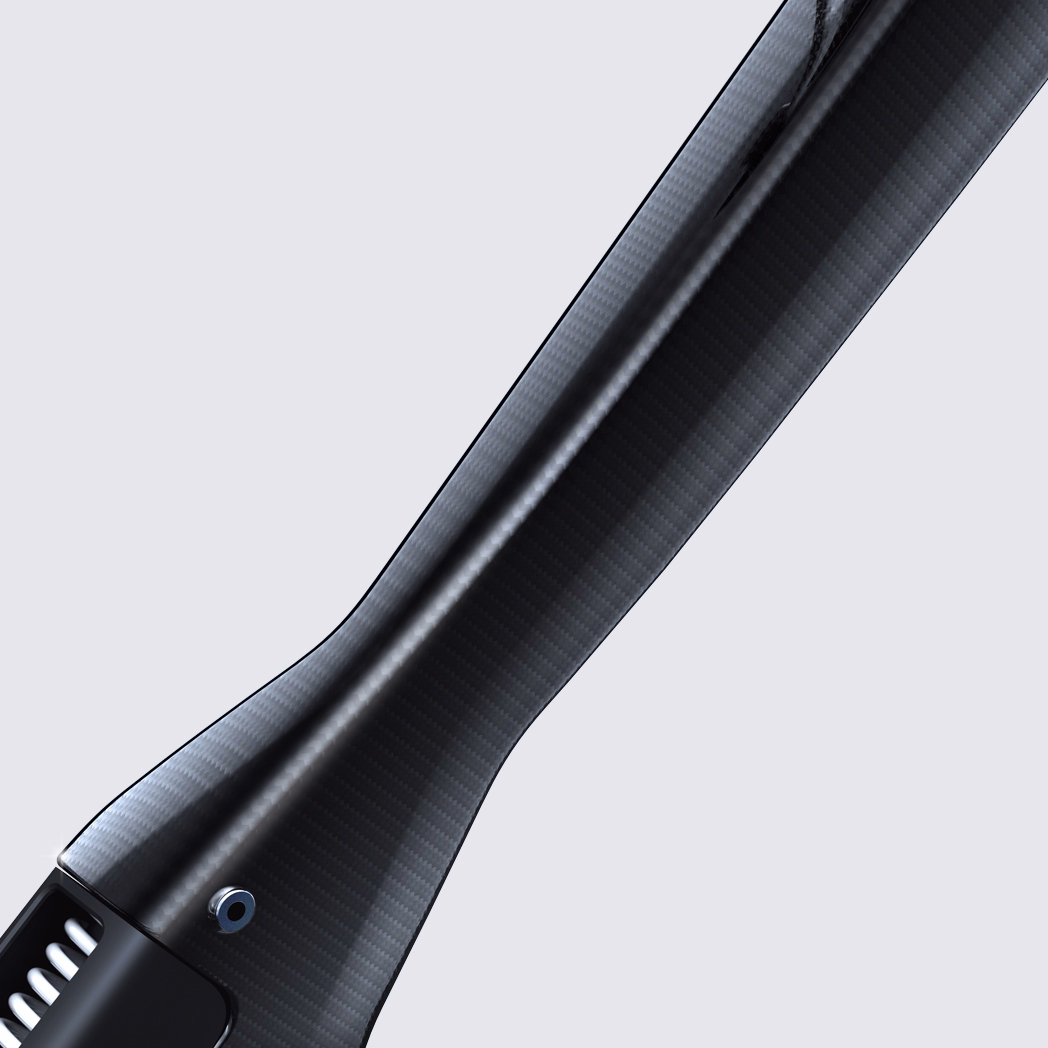

Exceptionally Durable
Unlike conventional pipe designs, the carbon frame offers superior stability and longevity.

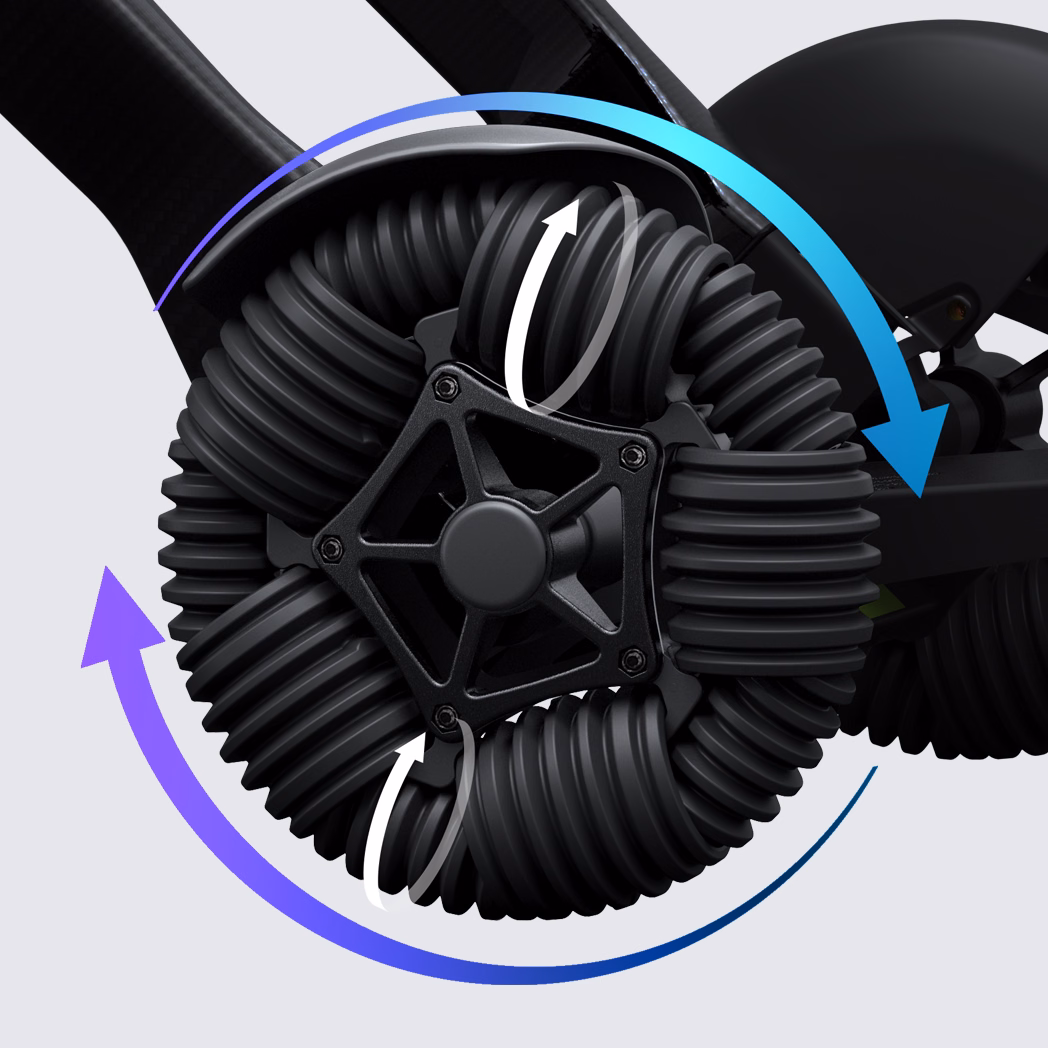

Patented Lightweight Omni Wheels
WHILL’s patented technology with 10 compact rollers enables sideways movement and an exceptionally tight turning radius.

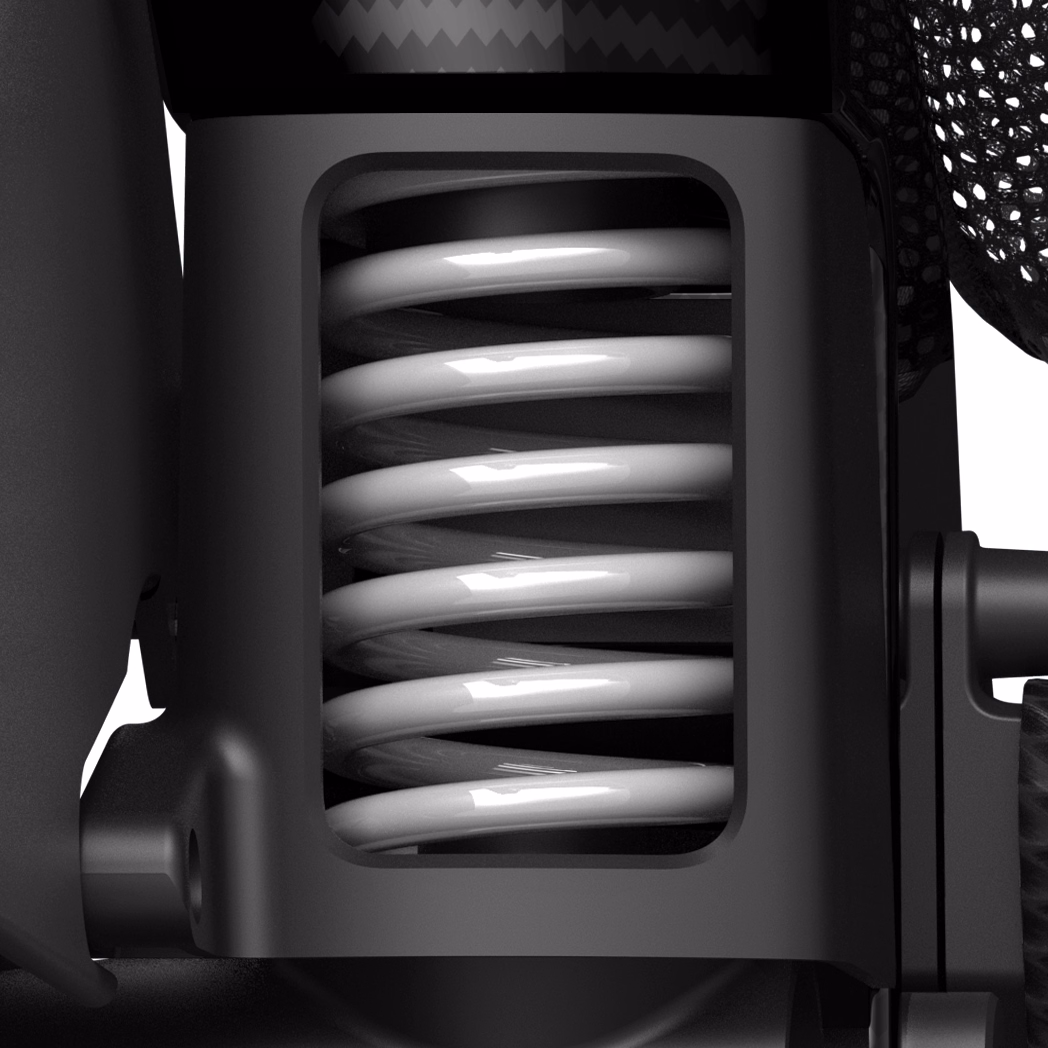

Independent Suspension
Each wheel absorbs shocks independently for a smooth ride on any surface.

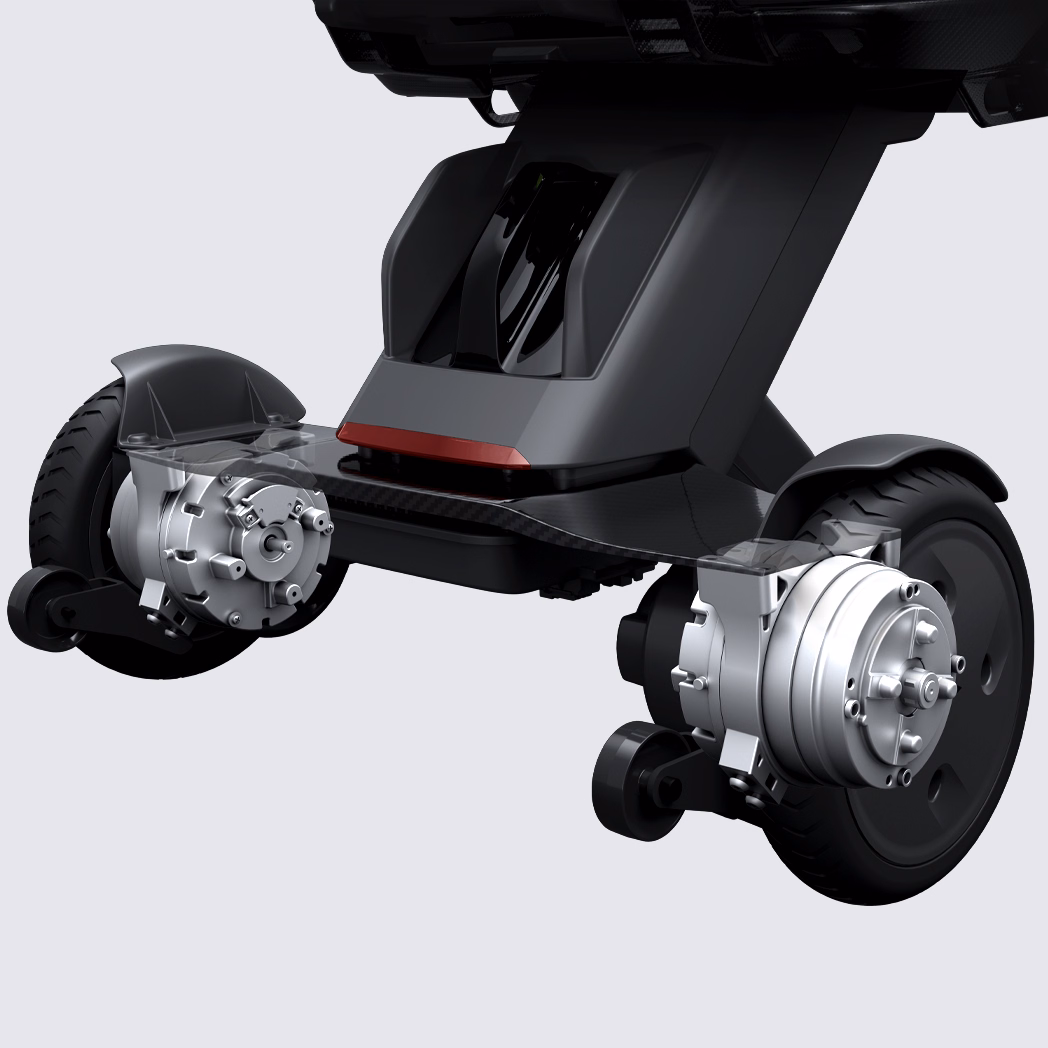

Dual-Motor System
Powerful dual motors rotate in opposite directions for precise, on-the-spot turns.
- Description
- Specifications
- Shipping Information
- Warranty
Description

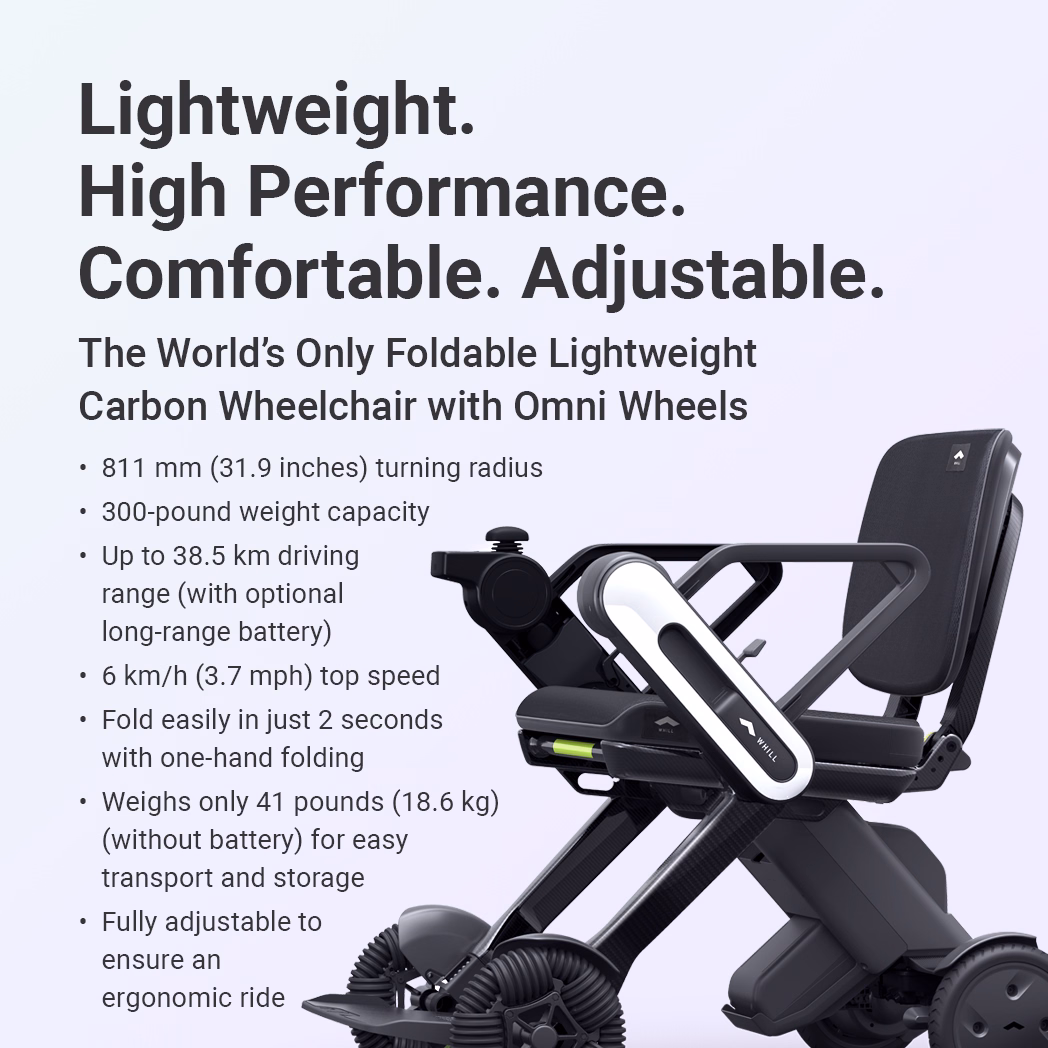

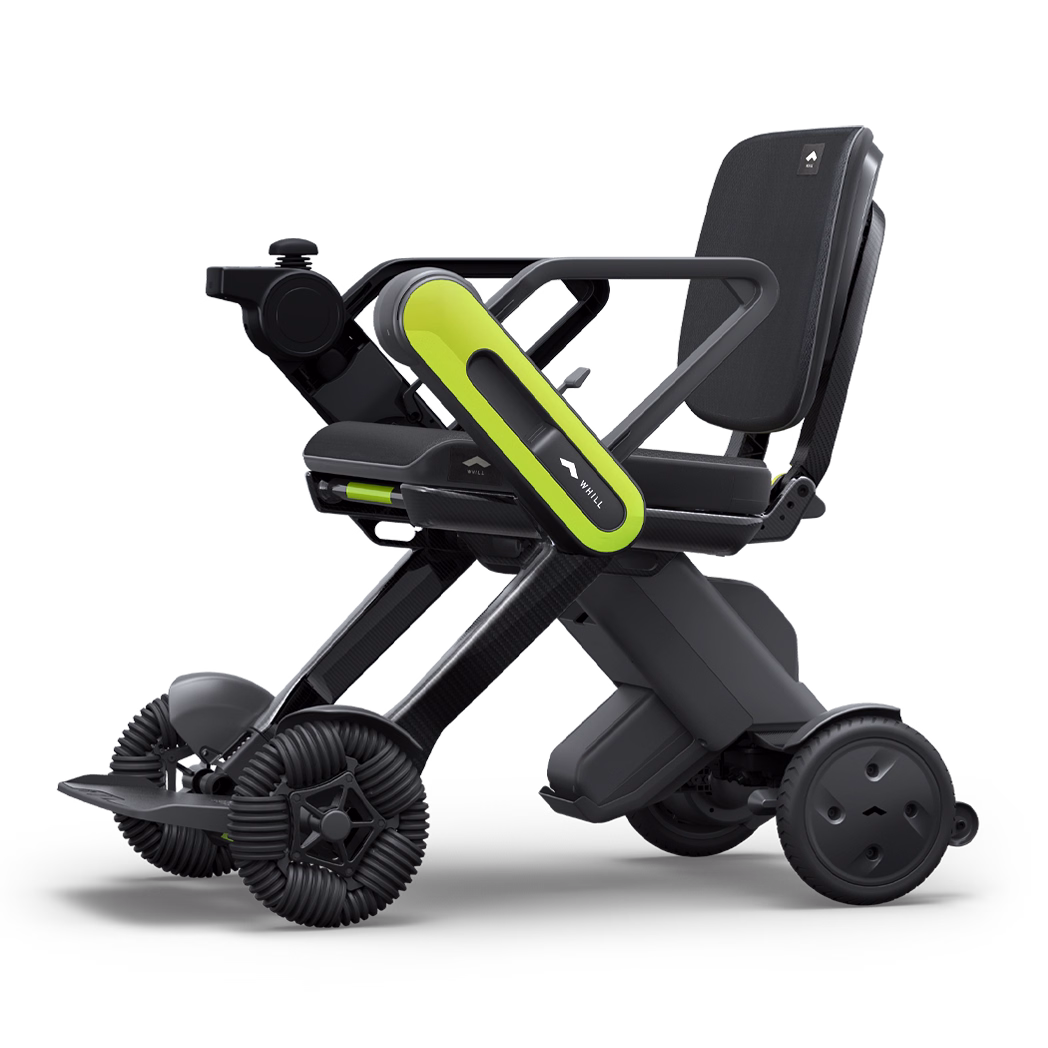

About the WHILL Model C Lite: The World’s Only Foldable, Lightweight Carbon Wheelchair with Omni-Wheels
The WHILL Model C Lite is a lightweight electric wheelchair that is designed for users who want world-class portability without compromising on performance. Featuring the world’s only molded carbon fiber frame in a foldable power chair, it weighs just 37.5 pounds, making it easy for users to lift, store, and transport. Its innovative one-handed folding mechanism allows you to fold the chair in seconds and stand it upright for storage.

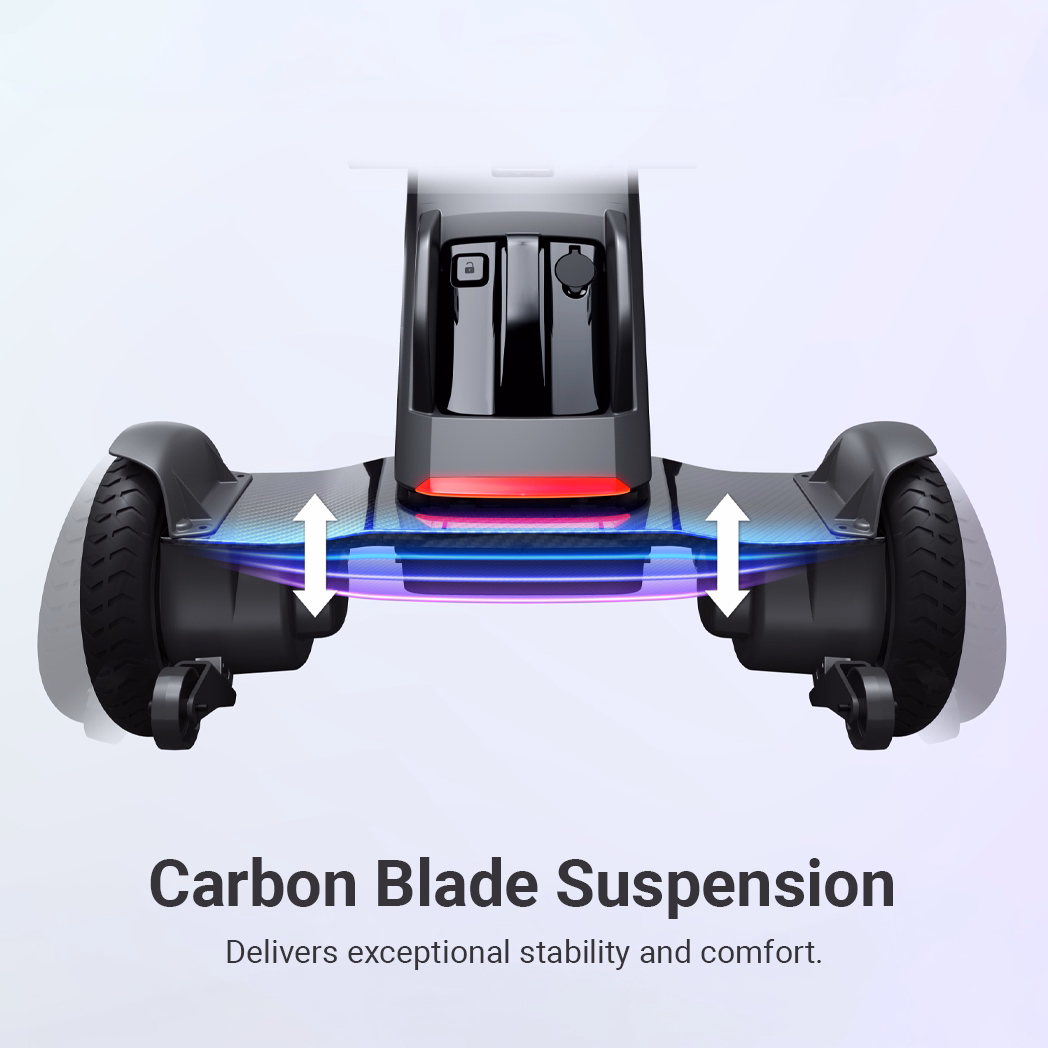

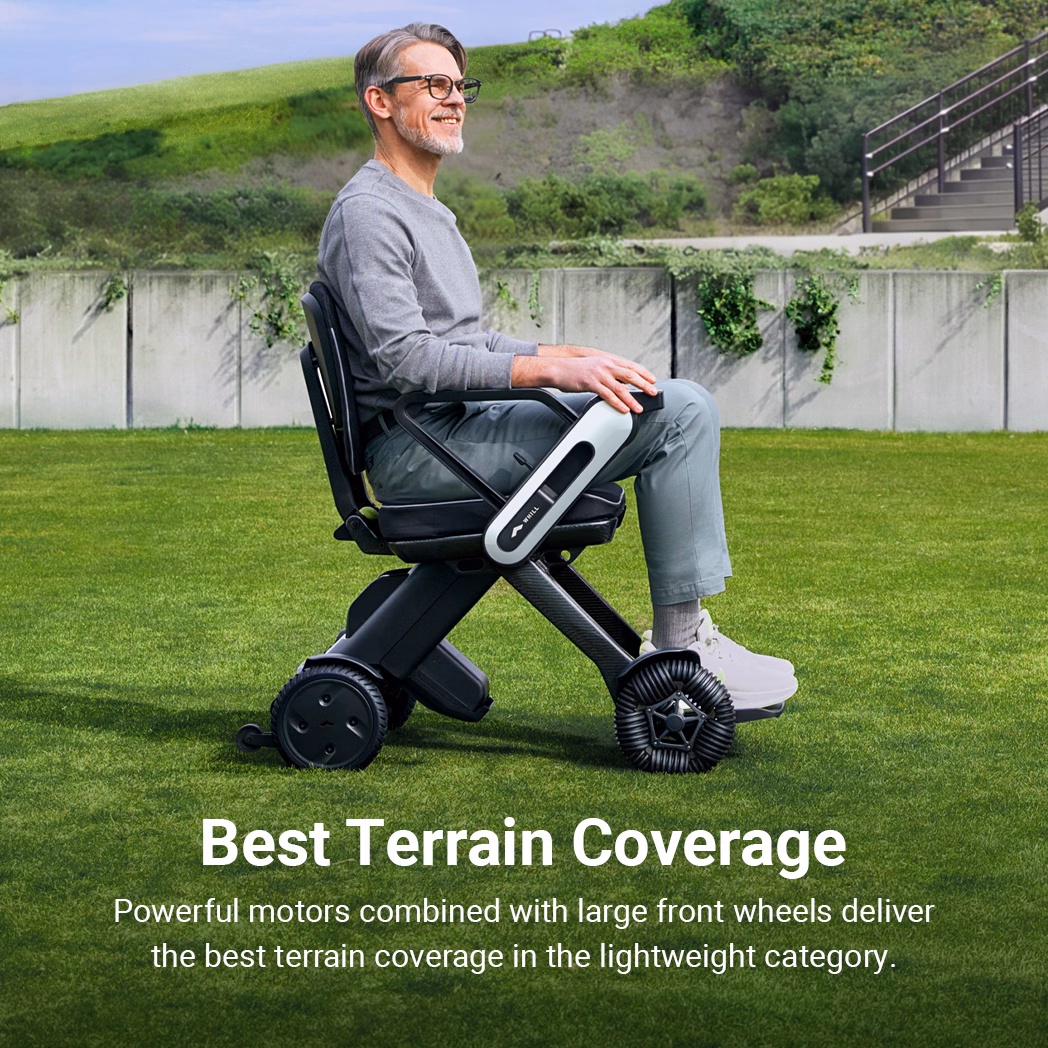

Like all WHILL products, Model C Lite is built for people with active lifestyles. It combines powerful dual motors with our patented front omni-wheels to deliver impressive performance across a variety of terrains. Advanced carbon blade suspension and independent shock absorption ensure that the chair provides a smooth, comfortable ride with minimal vibration.
Model C Lite is constructed from 100% recycled materials, making it one of the most sustainable power wheelchairs available today. Its recycled carbon fiber design significantly reduces COâ‚‚ emissions during manufacturing and allows the chair to be recycled again at the end of its lifespan.

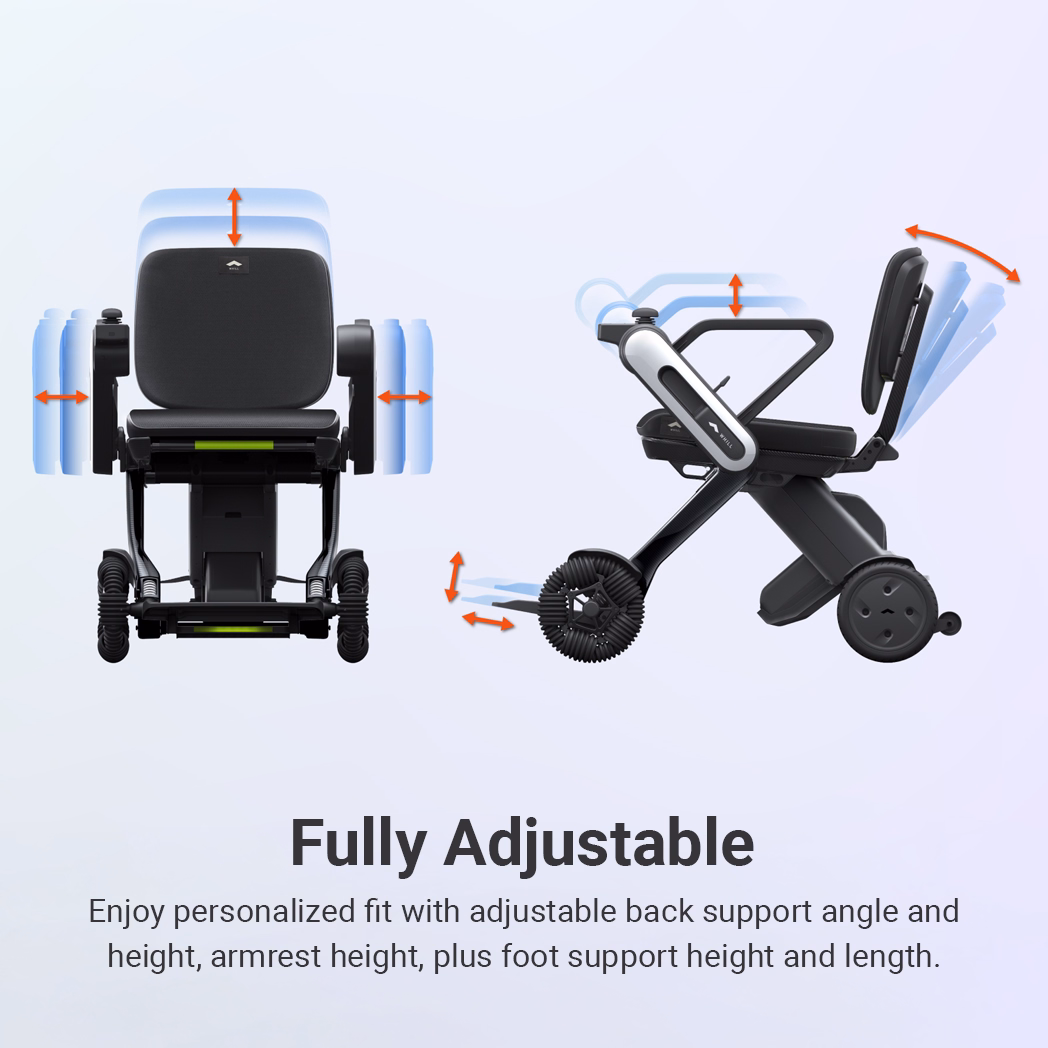

Adjustable back support, armrests, and foot supports allow users to personalize their seating position. The Model C Lite also delivers exceptional maneuverability, making it easier to navigate shops, homes, offices, and other crowded spaces.
Explore your world with confidence with Model C Lite!
Specifications
Â
Performance
| Driving Range with Full Battery Charge *1 | Up to 23.4 km |
| Driving Range with Full Battery Charge *1 | Up to 38.5 km |
| Maximum Speed | 6 km/h |
| Ground Clearance | 75 mm (2.95 inches) |
| Obstacle Clearance | 50 mm (1.97 inches) |
| Maximum Incline | 10 degrees |
| Turning Radius | 811 mm (31.9 inches) |
| Weight Capacity | 300 pounds (136 kg) |
| Air Travel Approved | Yes |
| Weather Tested | IPX5 |
| Suspension | 4-Wheel Independent |
*1 The driving range of this device varies depending on the types of roads or terrain it is driven on, as well as the load, ambient temperature, operating method, and other factors.
Size and Weight
| Seat Sizes | W 420 x D 450 mm (W 16.53 x D 17.7 inches) |
| Seat Height | 508 mm (20 inches) |
| Device Width | 587 mm (23.1 inches) |
| Device Length | 978 mm (38.5 inches) |
| Device Height | 795 to 868 mm (31.3 to 34.2 inches) |
| Device Weight *2 | 41 pounds (18.6 kg) |
| Folded Device Width | 587 mm (23.1 inches) |
| Folded Device Length | 500 mm (19.7 inches) |
| Folded Device Height | 755 mm (29.7 inches) |
| Battery Weight | 6.6 pounds (3 kg) |
*2 Without the battery.
Battery and Power
| Charging Time | Up to 4.5 hours |
| Battery Type | Lithium-ion |

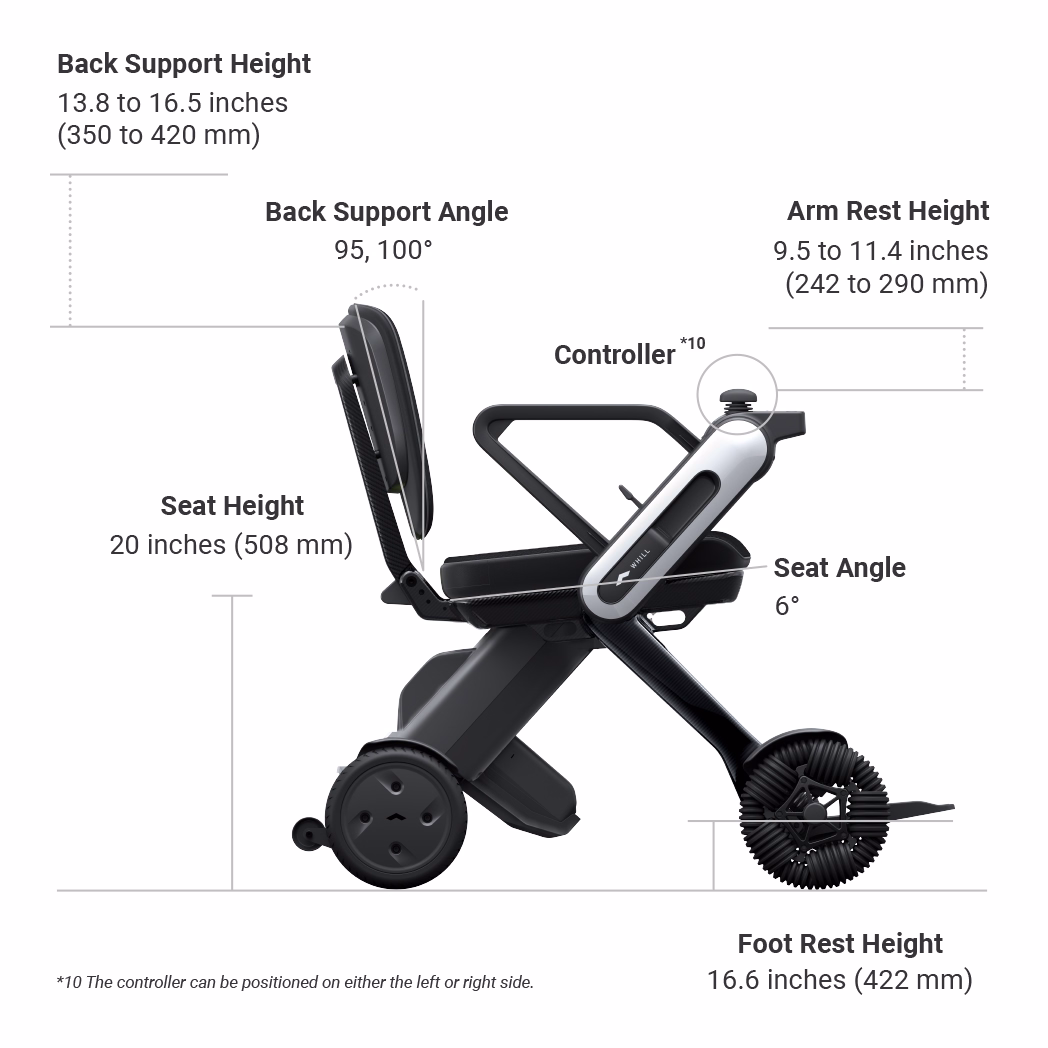

Adjustments
| Armrest Position *3 | Standard, Wide, Wider, Widest |
| Armrest Height *4 | 242 to 290 mm (9.5 to11.4 inches) |
| Controller Position | Right, Left |
| Back Support Angle | 95, 100 degrees |
| Back Support Height | 350 to 420 mm (13.8 to 16.5 inches) |
| Footrest Height *5 | 422 mm (16.6 inches) |
| Footrest Position *6 | Standard, Extended |
*3 Armrest position adjustment requires optional parts.
*4 Armrest to seat distance.
*5 Footrest to seat distance.
*6 Footrest position adjustment requires optional parts.
Shipping Information
Standard ground shipping is free for orders shipped within Canada. Delivery surcharges may apply to rural or remote postal codes. If additional shipping charges apply to your order, our customer service team will contact you with the additional shipping cost for approval and payment before the order is shipped. Orders requiring additional shipping charges will not be shipped until payment has been received.
Warranty
5 years: Base & Seat Frame
2 Years: Seat & Back Cushion
1 Year: Mechanical, Electrical, Components, Batteries & Tires
WHILL Awards
Accessories
By entering your email, you consent to receive promotional emails from WHILL. View our Privacy Policy for more details.
Watch Product Video
100% Recycled Carbon Fiber
Model C Lite is constructed from carbon resin made from recycled materials, making it highly environmentally friendly. This approach significantly reduces CO2 emissions compared to conventional manufacturing methods. In addition, the carbon resin itself can be recycled again at the end of the product’s lifespan, contributing to a circular resource cycle.
Load Into Your Car with Half the Effort
Loading your power chair into a car is easier and more effortless than ever. The optional loading arm attaches securely to your Model C Lite to give you extra leverage when lifting the device into your vehicle.
Coming Soon

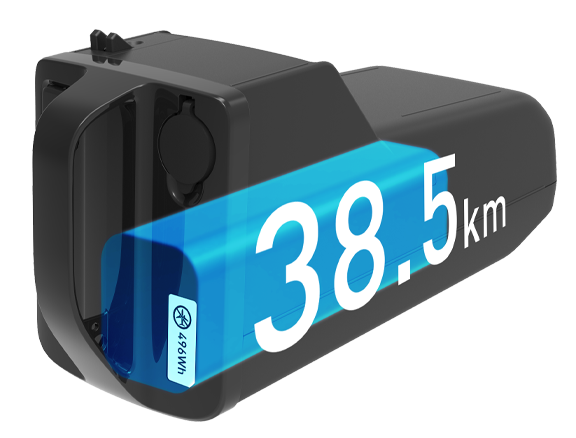

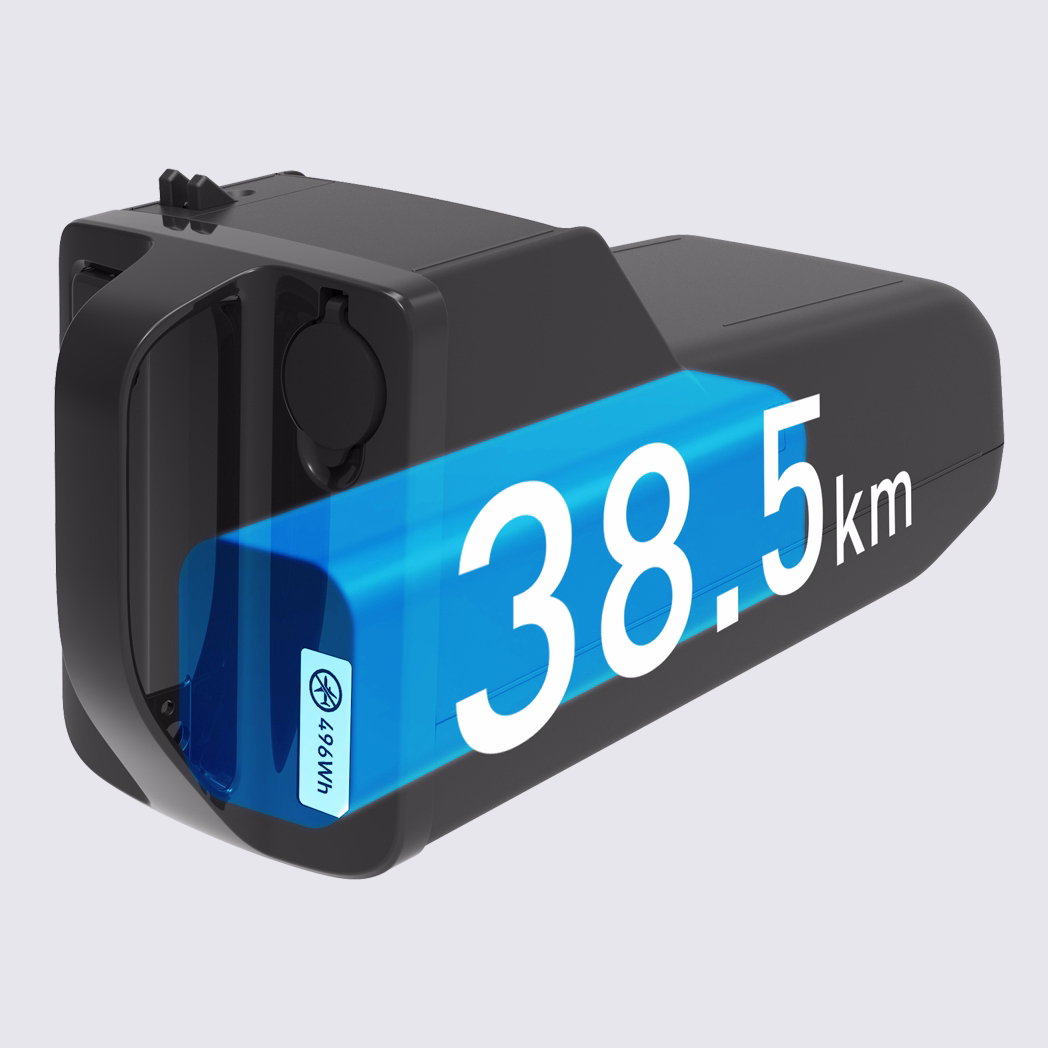

Optional Long-Range High-Capacity Battery
Optional battery for longer travel range.
*1 Availability may differ by location
38.5 km range with optional large capacity battery
23.4 km range with standard battery
Learn More
Discover what separates the Model C Lite from every other lightweight power chair on the market today. Explore its portability, maneuverability, and innovative molded carbon fiber design.
