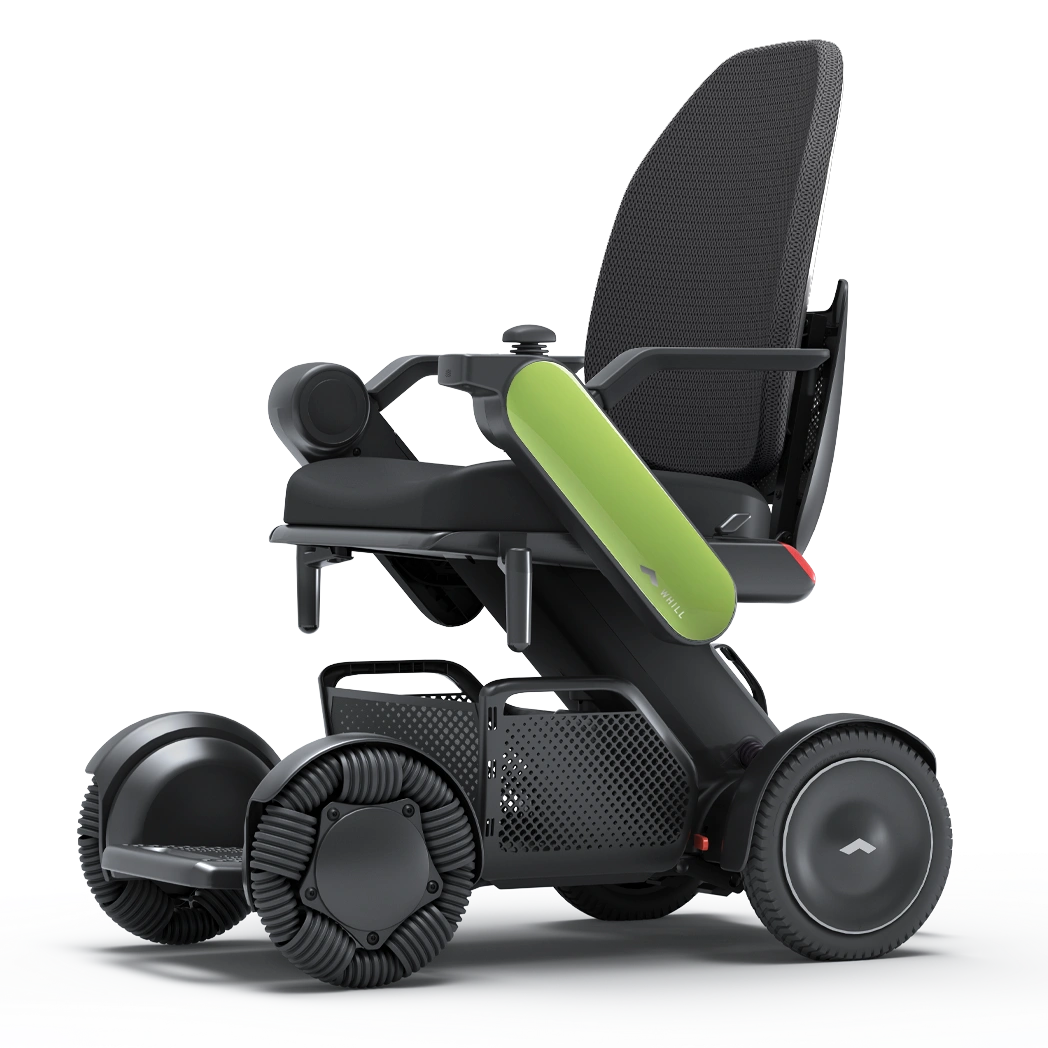

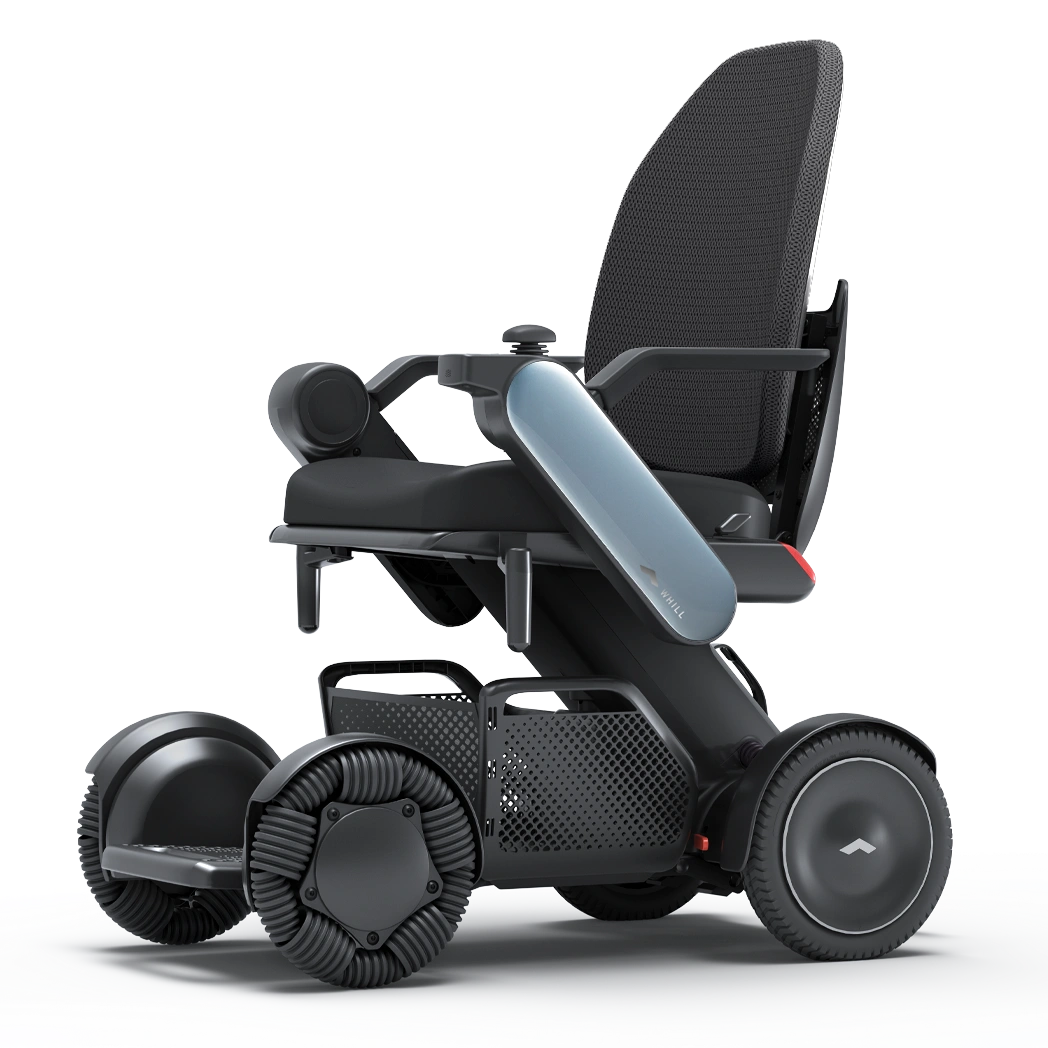

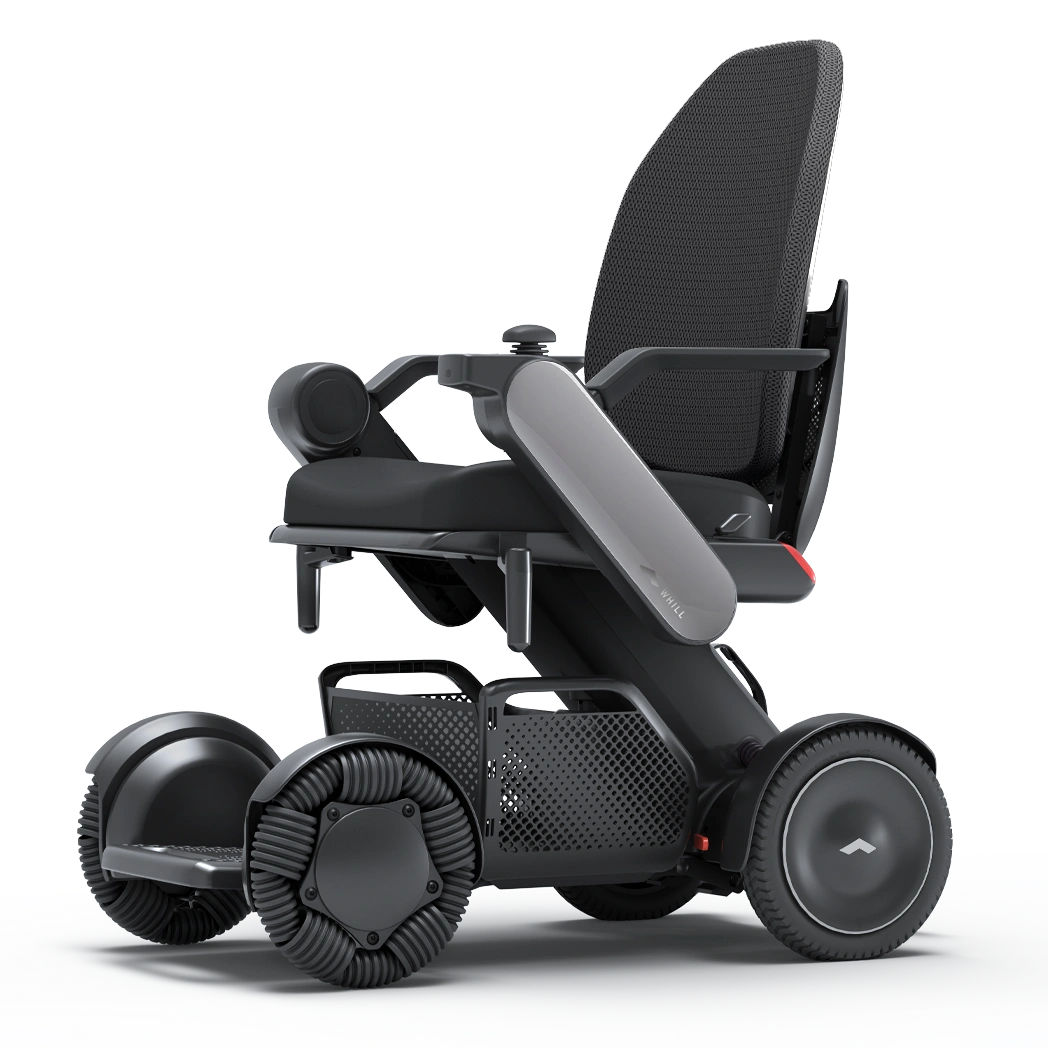

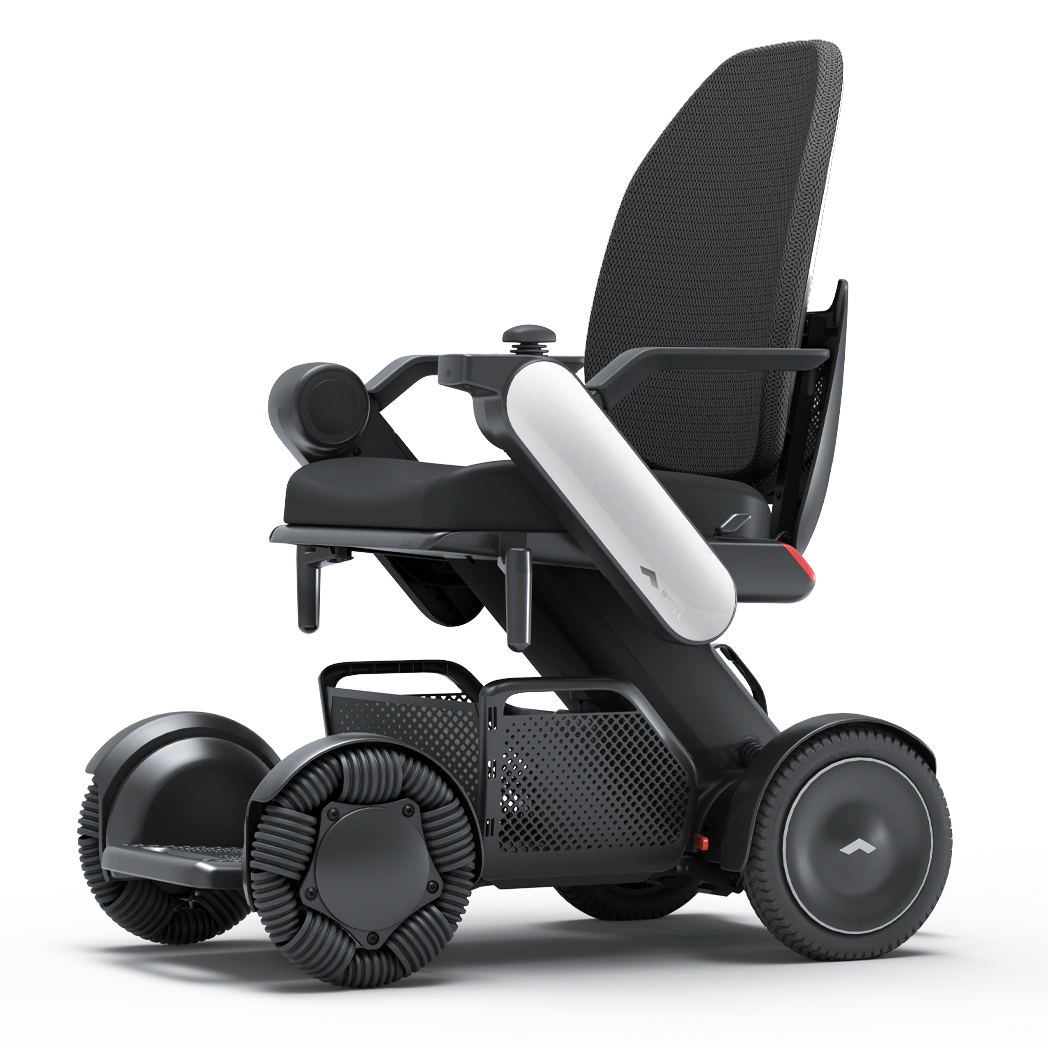

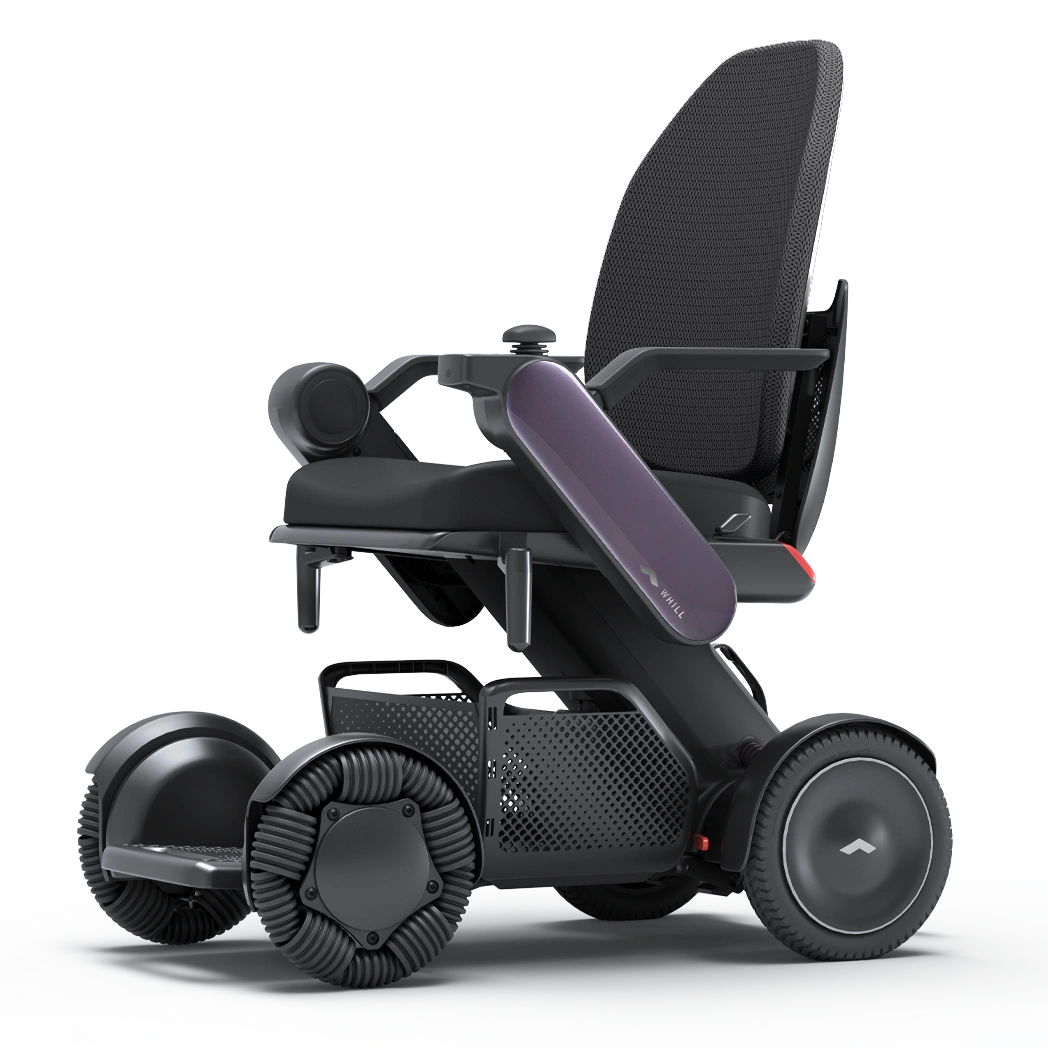

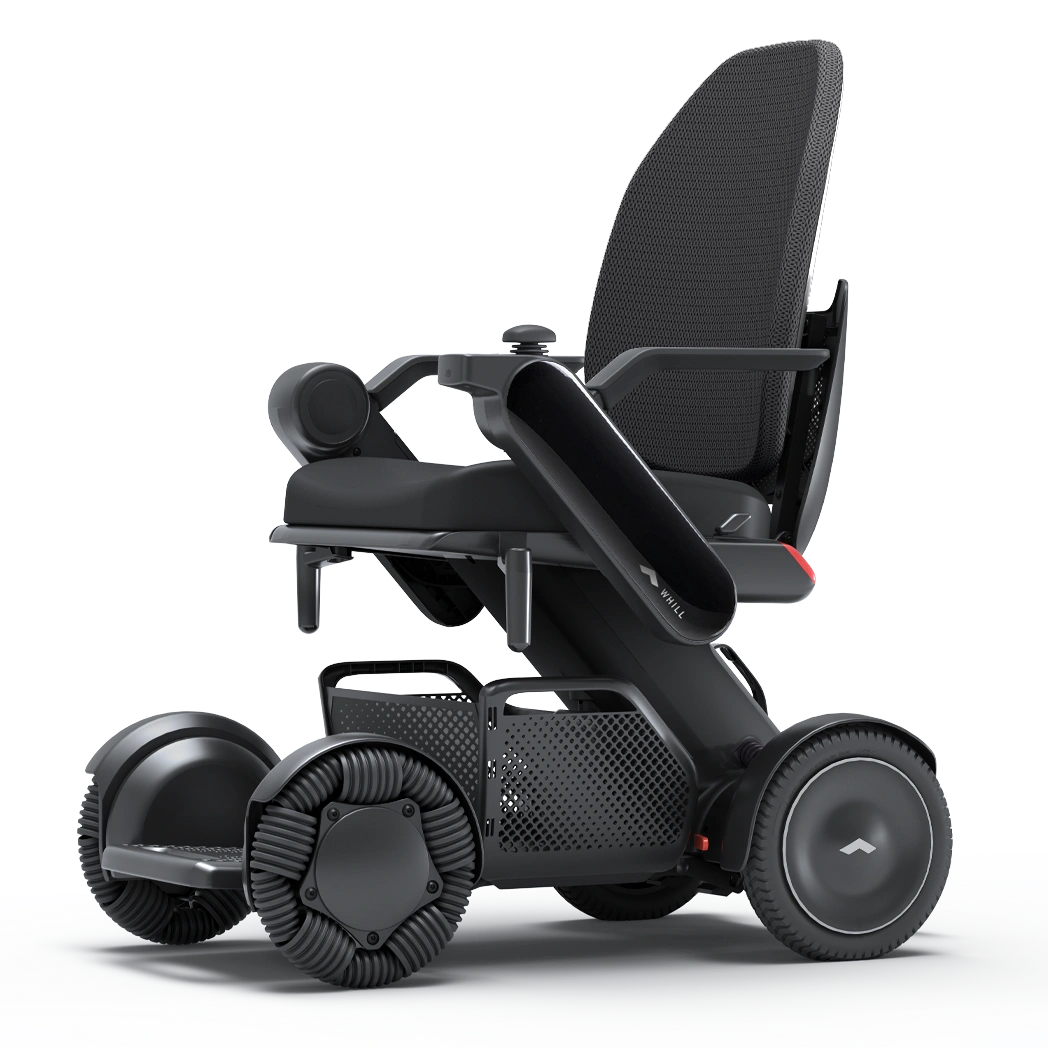

About the WHILL Model C2 High Back: Customizable Power Wheelchair

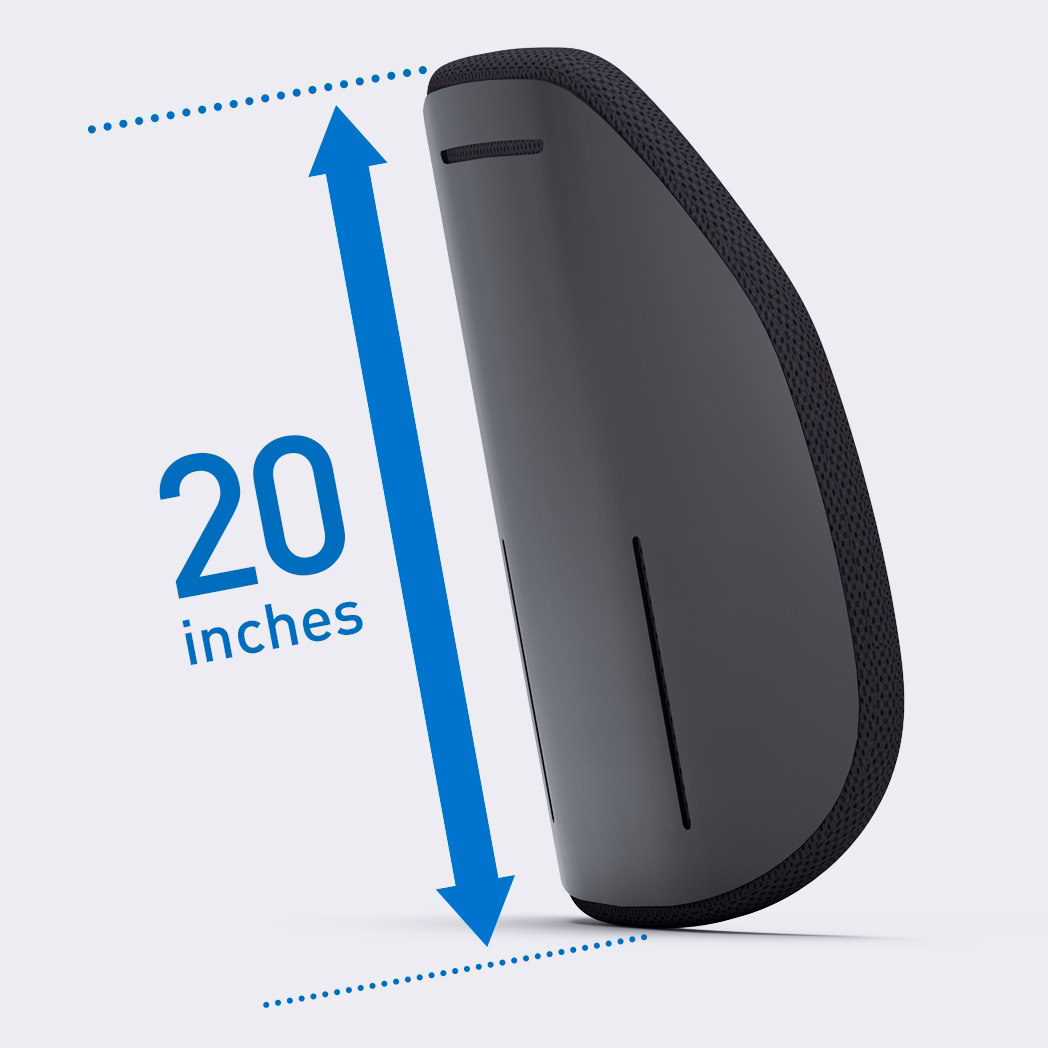

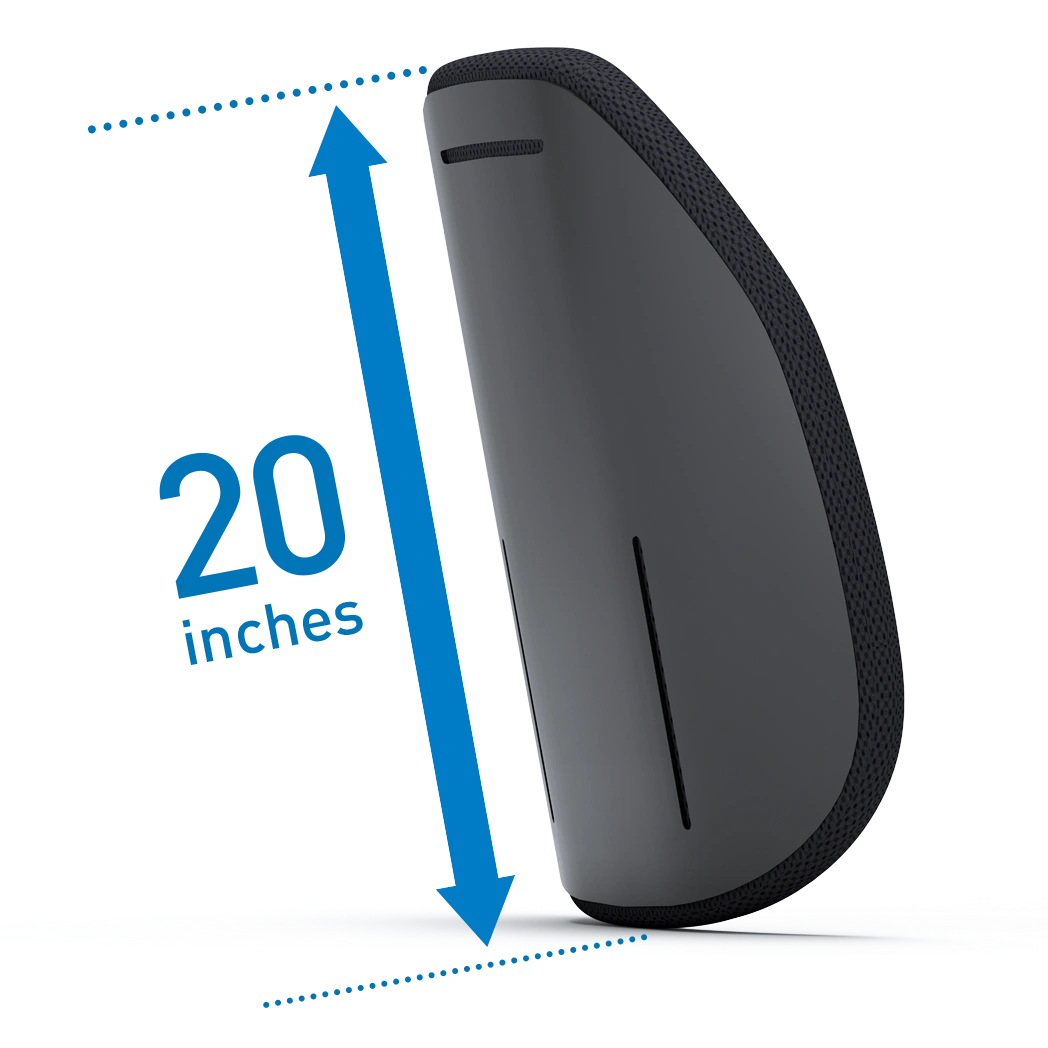

The WHILL Model C2 High Back power chair has it all — the same power, design, and superior handling of the standard Model C2, now with a taller back support that provides more comfort for the user. At 20 inches, the adjustable seatback is double the height of the regular Model C2 and can be set at an angle of either 90, 95, or 100 degrees.
When it comes to portable electric wheelchairs, this device is in a class of its own. With its unique combination of luxury, performance, and innovative technology like patented omni-directional wheels, the Model C2 gives users more freedom in their everyday lives and sets a new standard for what a mobility device can be. We designed the WHILL Model C2 High Back to provide users with the ultimate wheelchair experience, allowing you to get more out of life without sacrificing comfort or style. Its sleek and supportive design is a testament to our mission of creating high-quality electric wheelchairs that allow everyone to explore the world with confidence.
Please note: the High Back is currently only available on the 18″ and 20″ Model C2 seat widths. It is not available on the 16″ seat width.
FDA Compliance: The WHILL Model C2 has received 510(k) clearance for marketing as a Class II medical device.
Specifications
Performance
Driving Range with Full Battery Charge | Up to 12.4 miles (20 km) |
Maximum Speed *1 | 5 mph (8 km/h) 3.7 mph (6 km/h) |
Ground Clearance | 3 inches (76 mm) |
Obstacle Clearance | 2 inches (50 mm) |
Maximum Incline | 10 degrees |
Turning Radius | 29.9 inches (760 mm) |
Weight Capacity | 300 pounds (136 kg) |
Air Travel Approved | Yes |
Weather Tested | IPX4 |
Suspension | 4-Wheel Independent |
*1 The maximum speed depends on local regulations.
Size and Weight
Seat Sizes | W 18 x D 18 inches (W 450 x D 450 mm) W 20 x D 18 inches (W 500 x D 450 mm) |
Device Width *2 | 23.6 to 25.6 inches (554 to 650 mm) |
Device Length | 38.8 inches (985 mm) |
Device Height *3 | 26.4 to 28.7 inches (670 to 730 mm) |
Device Weight *4 | 116 pounds (52.6 kg) 116.4 pounds (52.8 kg) |
Battery Weight | 6 pounds (2.7 kg) |
Seat Assembly Weight | 26.9 to 28.9 pounds (12.2 to 13.1 kg) |
Front Drive Base Weight | 38.8 pounds (17.6 kg) |
Rear Drive Base Weight | 42.8 pounds (19.4 kg) |
*2 Total device width based on seat width.
*3 At top of controller. Highest point of device with back support folded down.
*4 Includes battery (6 lbs (2.7 kg)). Device weight varies by seat size.
Battery and Power
Charging Time | Up to 5 hours |
Battery Type | Lithium-ion |

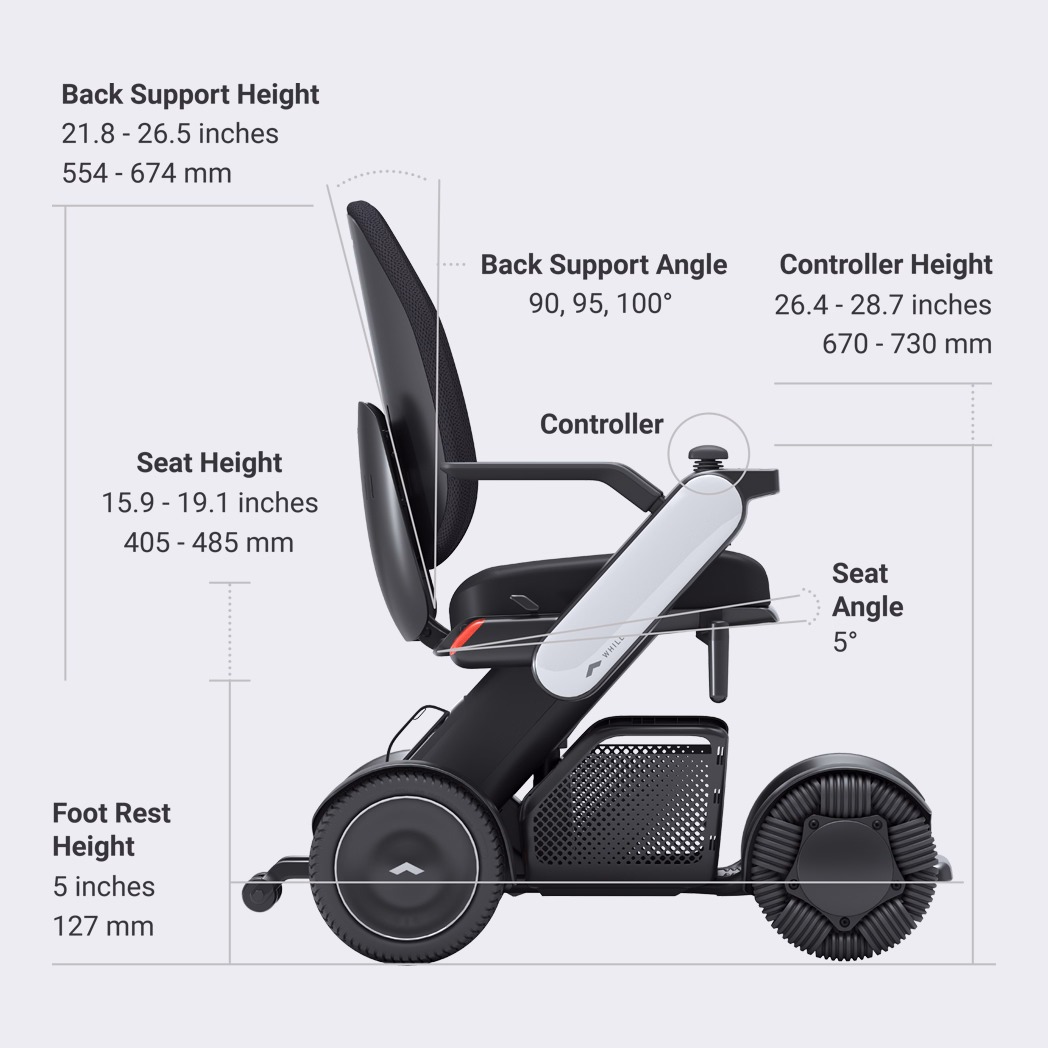

Adjustments
Seat Height *6 | 15.9 to 19.1 inches (405 to 485 mm) |
Controller Position *7 | Right, Left |
Controller Height *8 | 26.4 to 28.7 inches (670 to 730 mm) |

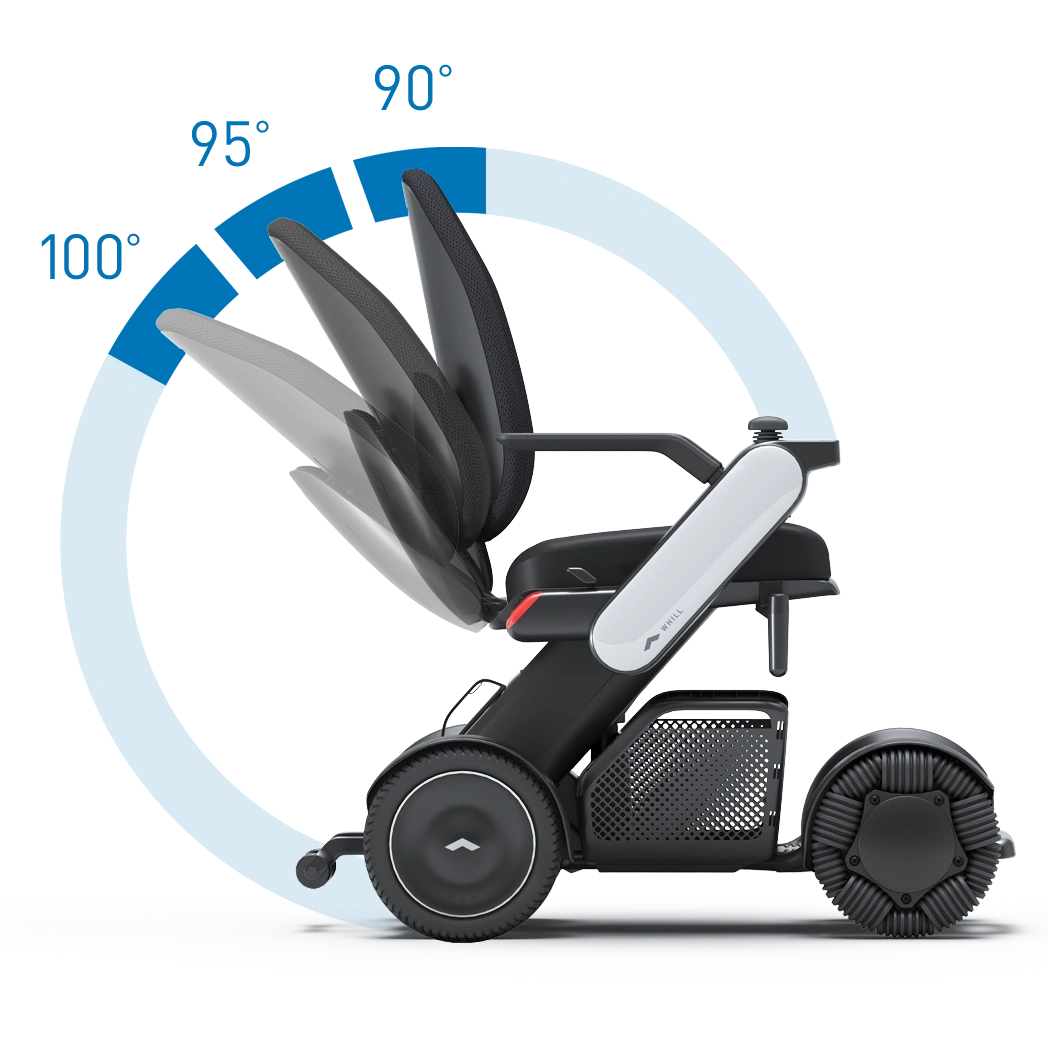

Back Support Angle | 90, 95, 100° |
Back Support Height *9 | 21.8 to 26.5 inches (554 to 674 mm) |
*6 Seat-to-Floor height.
*7 Seat-to-Floor height.
*8 Floor to top of joystick height.
*9 Seat to top of back support cushion height.
Shipping Information
Free shipping to the contiguous US on orders over $50. Additional shipping fees may apply for Alaska and Hawaii.
Warranty
5 years: Base & Seat Frame
2 Years: Seat & Back Cushion
1 Year: Mechanical, Electrical, Components, Batteries & Tires
